Expanded Label Shapes

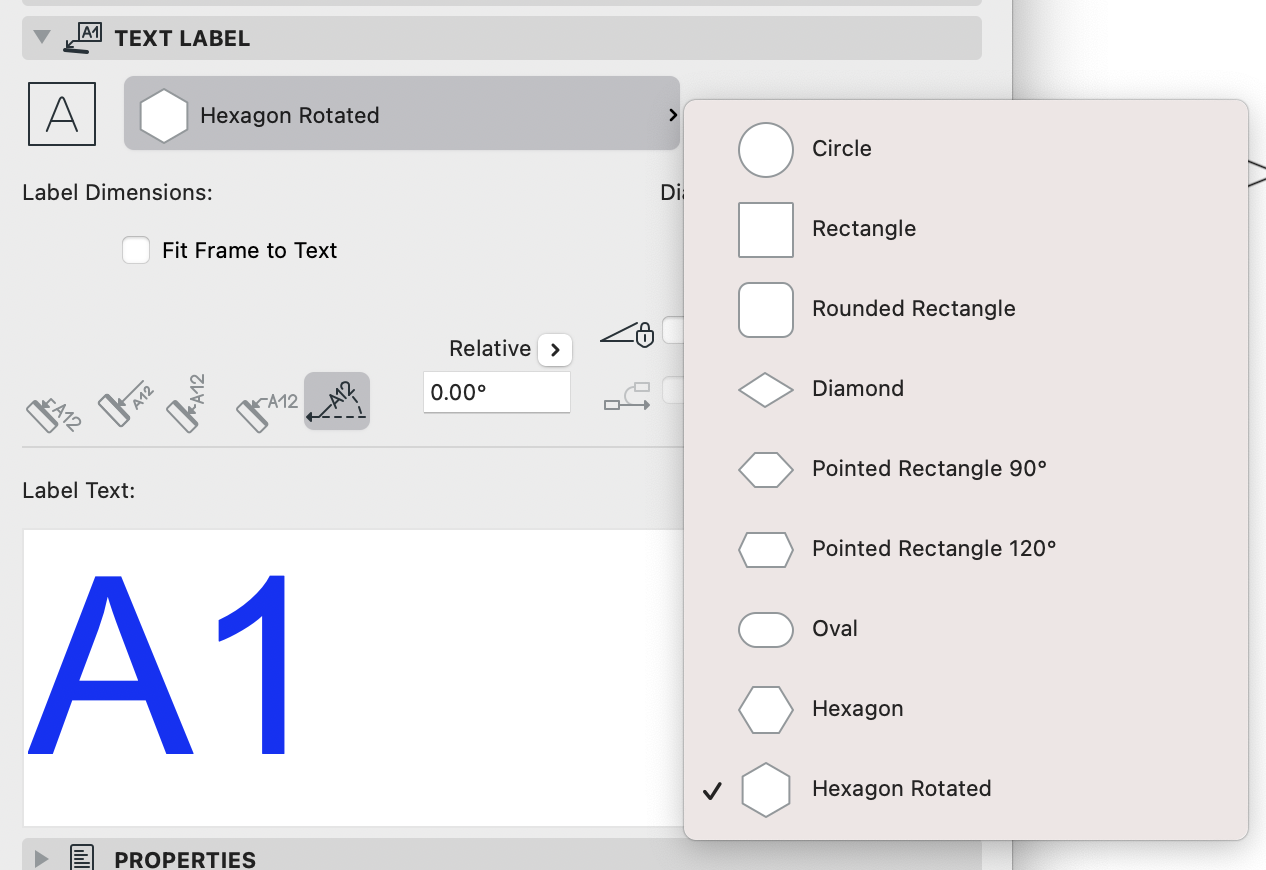

The available frame shapes for autotext-based labels have been expanded to support more flexibility and customization. Five new shapes have been added to the existing four shapes.

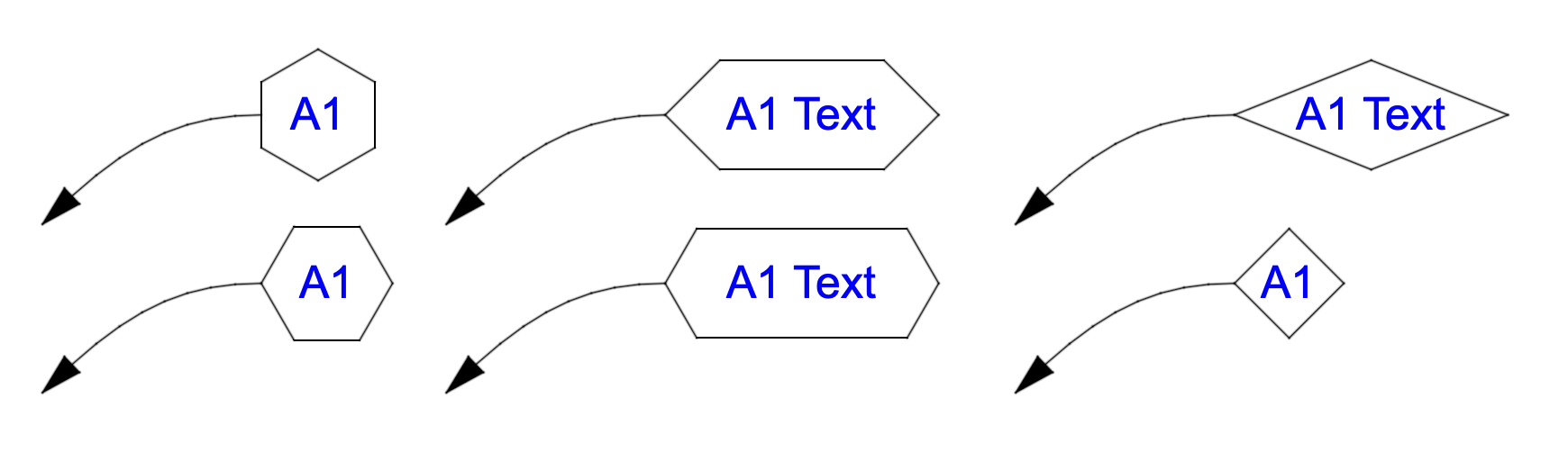

• New "Hexagon" and "Hexagon Rotated" shapes, flat sides vs flat top/base, either measured from the center to the furthest point or to fit text size

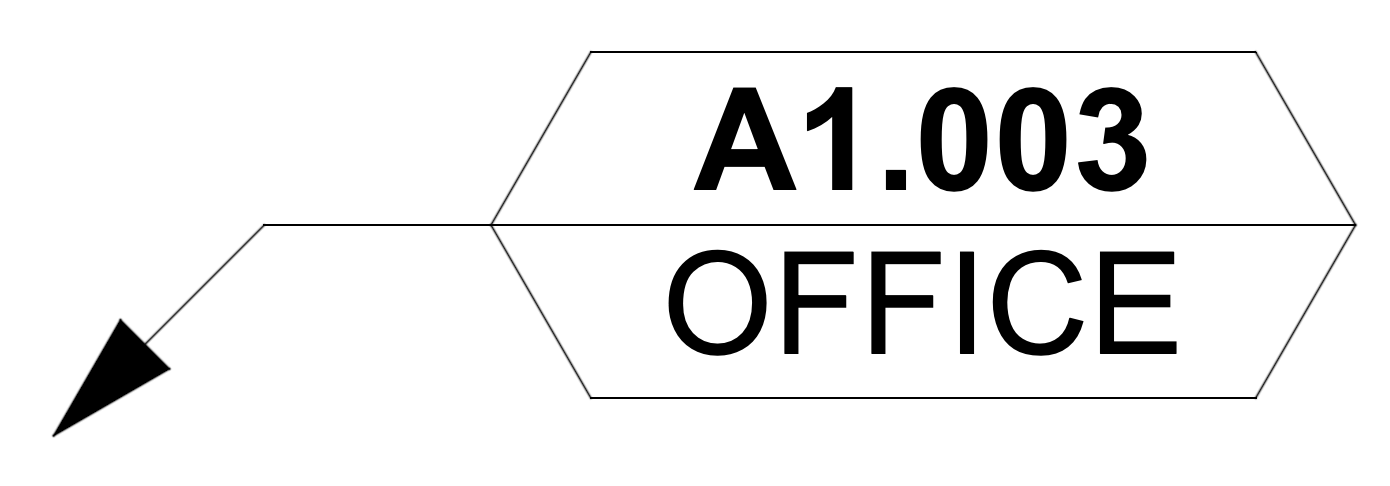

• New "Pointed Rectangular" shapes, with 90 and 120 degree sides, either measured with a set width and height or to fit text size

• New "Diamond" shape, either measured with a set width and height or to fit text size

• Pill has been renamed to Oval for better consistency with GDL-based labels
