IFC Improvements

IFC4x3 expanded support

Archicad 30 extends IFC4x3 import capabilities by supporting additional IFC4x3-specific entities and types.

The enhanced workflow allows Archicad to handle newer IFC4x3 schema content more accurately while maintaining compatibility with existing IFC2x3 and IFC4 collaboration processes.

Export to ifcSpatialZone

Through IFC4 or IFC4x3 Export translators, under Type Mapping, now you can map an Archicad Classification to ifcSpatialZone, for such elements as Zones or Morphs. Once the Type Mapping is set, it will be available in the IFC Project Manager, allowing users to drag/drop elements into this container.

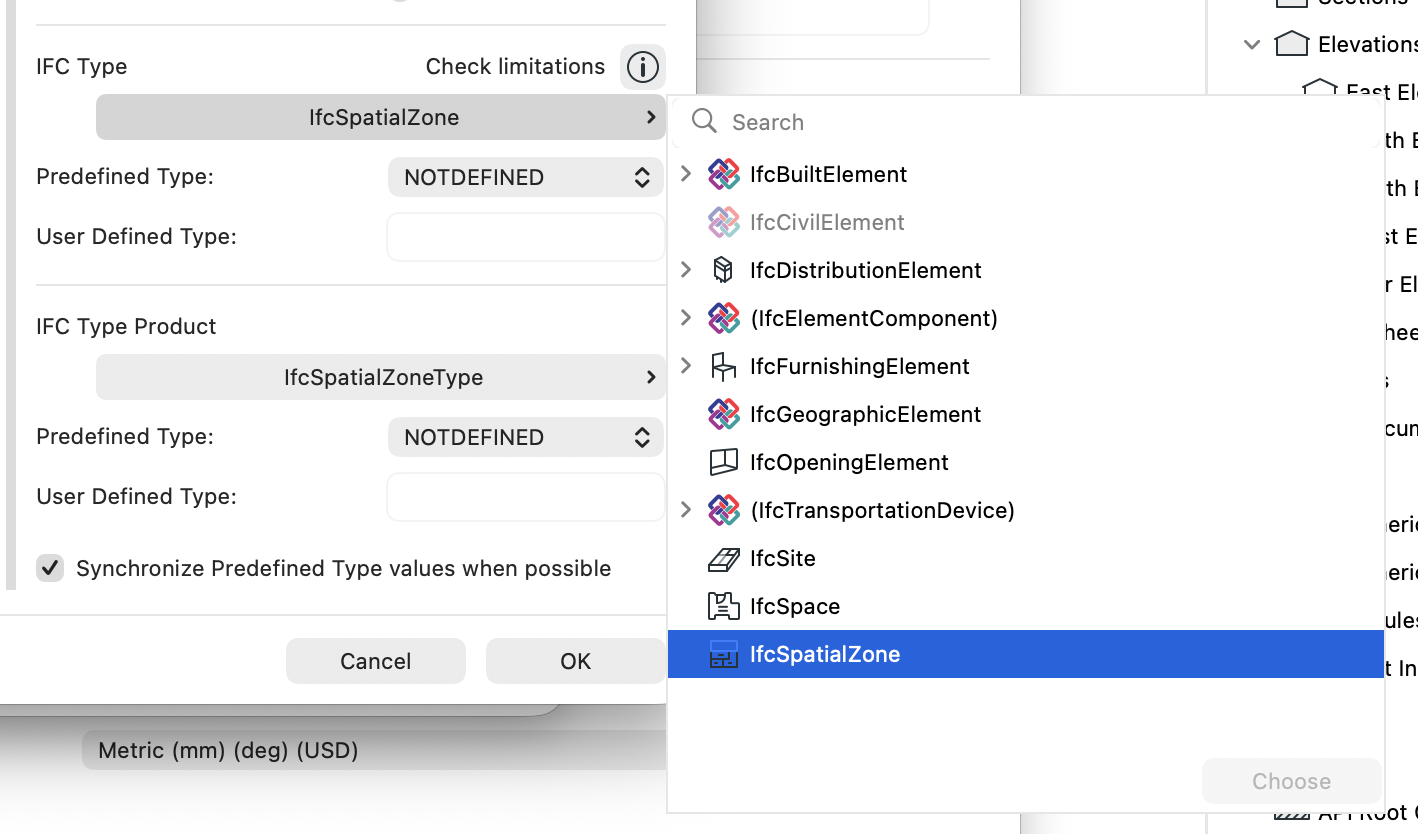

Type Mapping to ifcSpatialZone

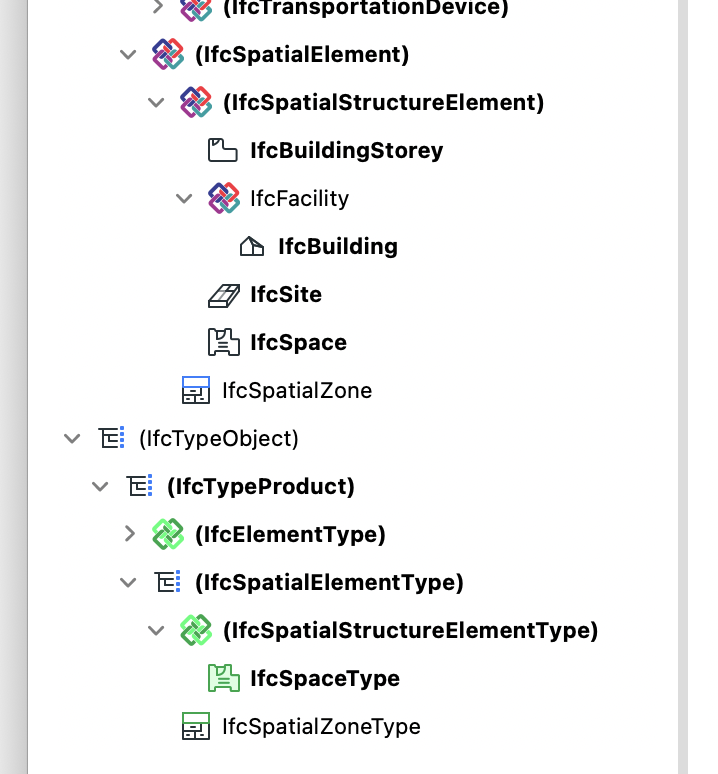

IFC Project Map now includes ifcSpatialZone
