Create a Log Wall

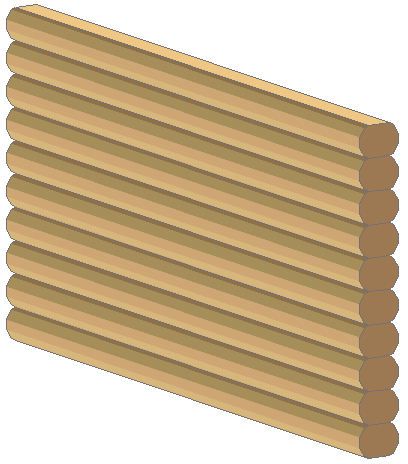

You can create straight walls constructed from logs. Log details appear in both the 3D Window and Section/Elevation/IE Windows.



Clicking the Log Details button in the Model panel of Wall Settings provides a number of geometry and texture options.

Note: Log construction is only available for basic straight walls. When determining the log’s height, remember that if you enter a value that is larger than the wall’s width parameter, the logs will not rest on each other.

See Log Details Dialog Box.
