On-Screen View Options for Openings

Watch the Video

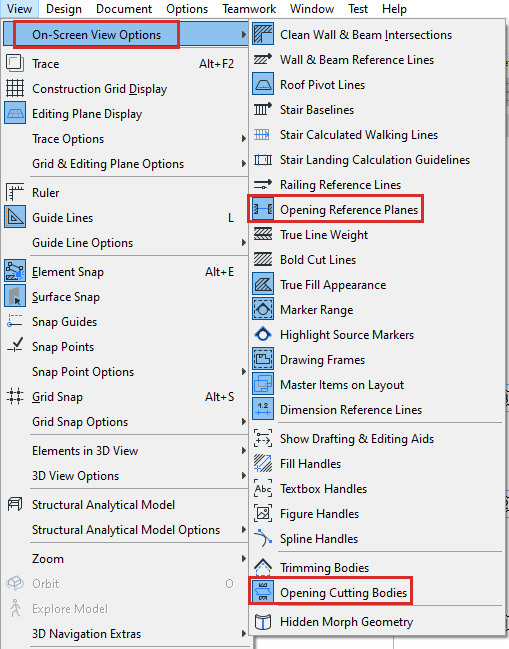

Turn these options with one of the following:

  • View > On-Screen View Options
  • the On-Screen View Options toolbar.


Opening Cutting Bodies

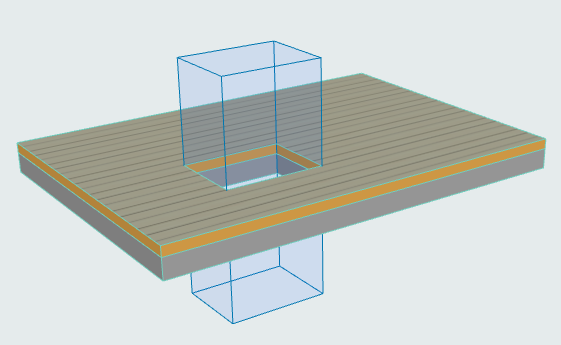

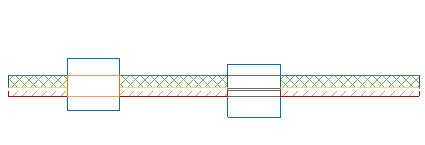

OpeningCuttingOn2D.png OpeningCuttingOn3D.png

Opening Reference Planes

 This toggle ensures that an Opening will have an on-screen display on the Floor Plan, even if it is located entirely outside of its associated host element.
