Column Model Display

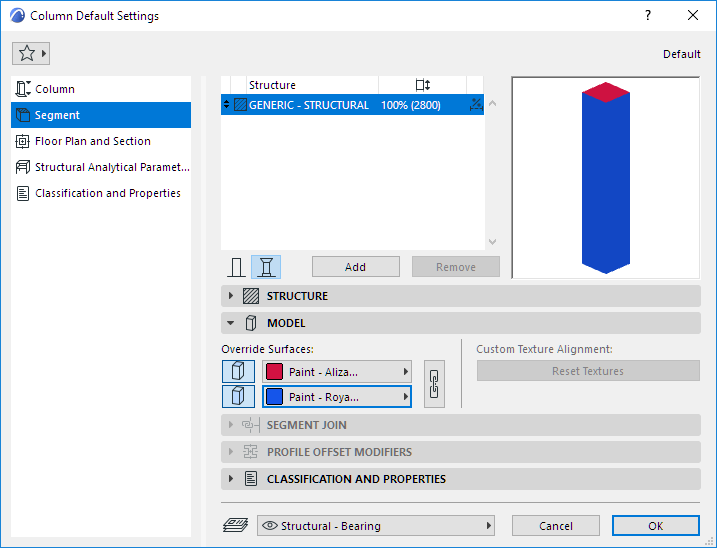

Use the Model Panel of Column Settings (Segment page) to override Column surface(s).



Override Surface: Click to override the surfaces assigned to this column or segment in its Building Material:

  • Top and Bottom Surfaces
  • Side (Extrusion) Surfaces
    Note: For Columns placed with the Wrapped method, the choice you make here is overridden by the surfaces of the Walls that they intersect. (See 3D Display of Wrapped Columns.)
    Note: For a Profile Column, you can also apply a Custom surface to any edge(s) of the profile element. (See Apply Custom Surface or Line to Profile Edge.)

Custom Texture Alignment: If this message is activated, it indicates that the currently selected column (already placed in the project) has been assigned a custom 3D texture.

  • In this case, you can click Reset Texture to restore the origin of the Texture of the selected column or segment.

    For more information, see Align 3D Texture.
