Beam End Cuts

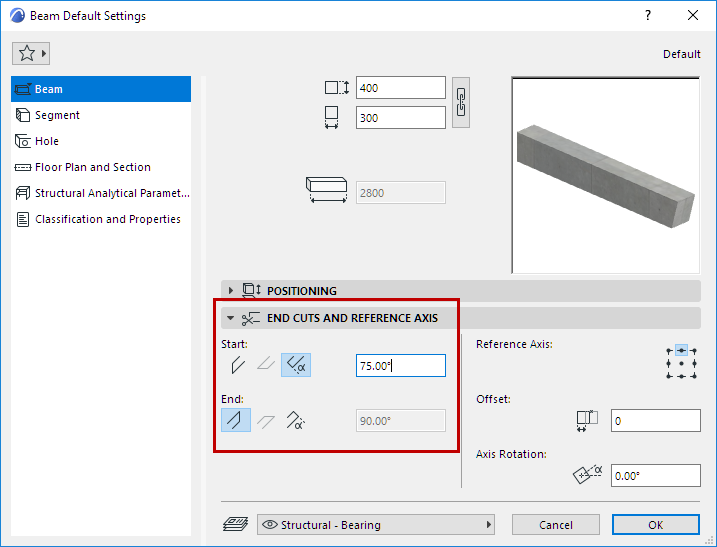

Go to Beam Settings - End Cuts and Reference Axis Panel, or the Start/End angle controls in Beam Info Box.



Define the Start and End edges of the Beam as angle as horizontal, vertical or custom.

Note: Horizontal available for slanted Beam only.

You can also edit this geometry graphically:

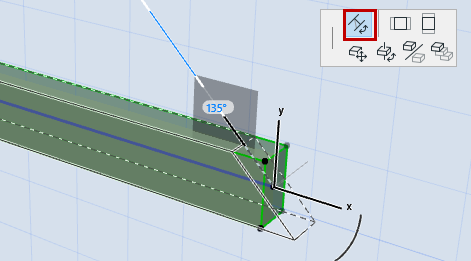

  • Select a Beam in 3D. Click on its end surface, then choose Rotate Join Angle from the pet palette.
