Editing Splines

Select a Spline, then edit it in the following ways.

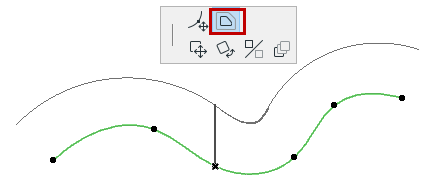

Offset Spline

Choose the Offset command from the Pet Palette to offset the spline.



See also Offset All Edges.

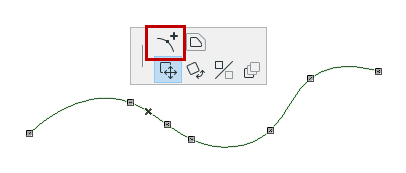

Insert new node

Click a spline with the Mercedes cursor to bring up the Pet Palette; then use the Add new node to Spline command from the pet palette.

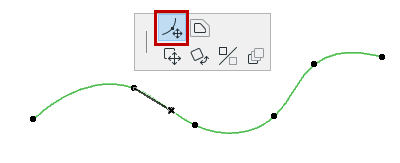

Move or delete a node

Click a node of the spline to bring up the Pet Palette. Choose the Modify Spline path command.

- Drag the node onto its neighboring node to delete it, or

- Drag the node to a new location.



Unify a series of connected splines

  • Select the splines.
  • Choose the Edit > Reshape > Unify command.
