Static Dimensions

Static Dimensions are not associative.

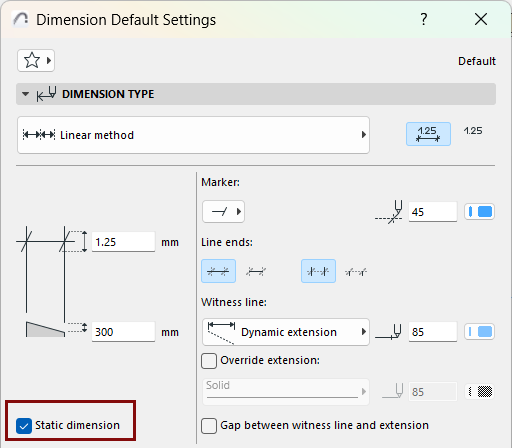

To make an existing dimension into a static dimension, select the dimension and enable the Static Dimension checkbox in Dimension Settings.

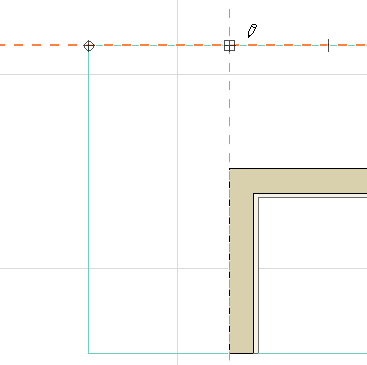

The reference point of a static linear dimension is rectangular.



Once a dimension has been made static, it cannot be made associative again.
