Example: Headroom Collision Check

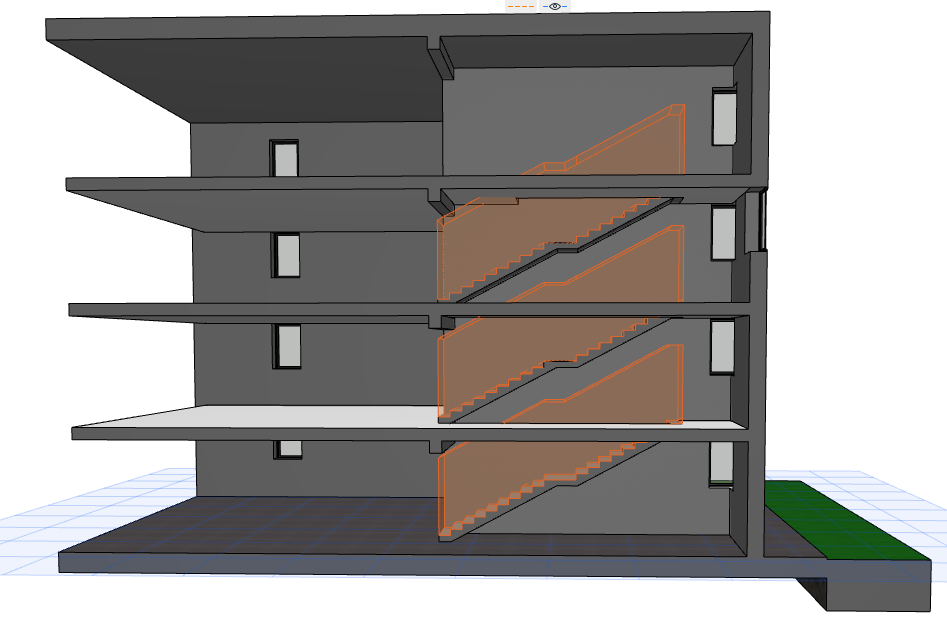

We will check for Headroom collision in this 3D view of the model.

Note: The headroom visibility is turned on at Document > Model View > Model View Options (Stair Options).

  1. Go to Design > Model Check > Collision Detection.

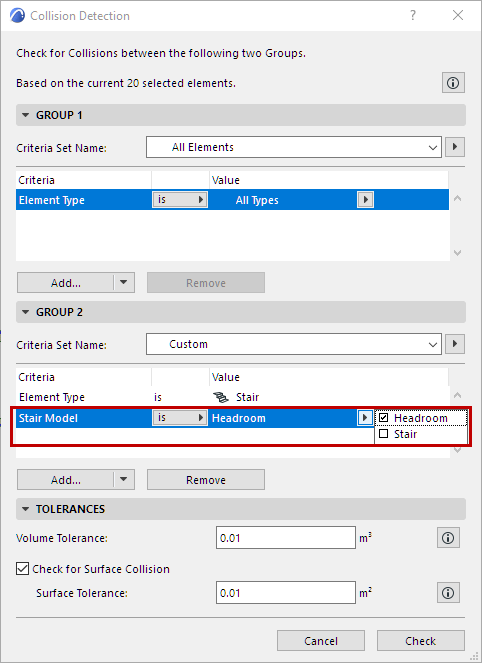

  2. In the dialog box, define the collision criteria.

    • For Group 1: all 3D elements
    • For Group 2: Stairs, considering the Headroom part of the Stair Model.
  3. Press Check to run Collision Detection.
  4. The Model Check Report opens to show results. Here, for each result you can view the related elements in the model and create Issues as needed.

    See Model Check Report .
