Choose dimension presets for MEP route

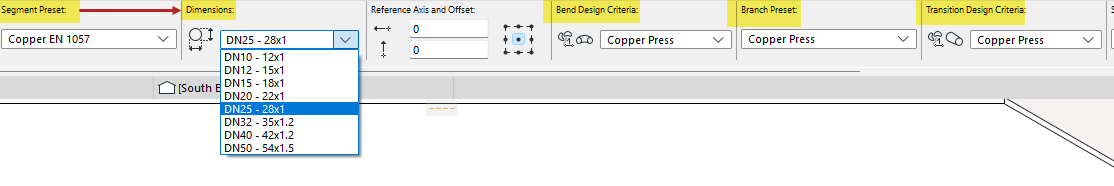

From the info box, choose presets (table of dimensions) for the parts of the MEP route: segments, elbows, branches, and transitions.


  • For route segments, choose a Segment Preset
  • For route segments: Also choose a DN dimension. Elbows and branches of this route will also use the same DN from their respective presets.
  • For elbow and transition elements, choose a preset under “Design Criteria”
  • For branch elements, choose a preset from “Branch Preset”
