Labeling Electrical Devices

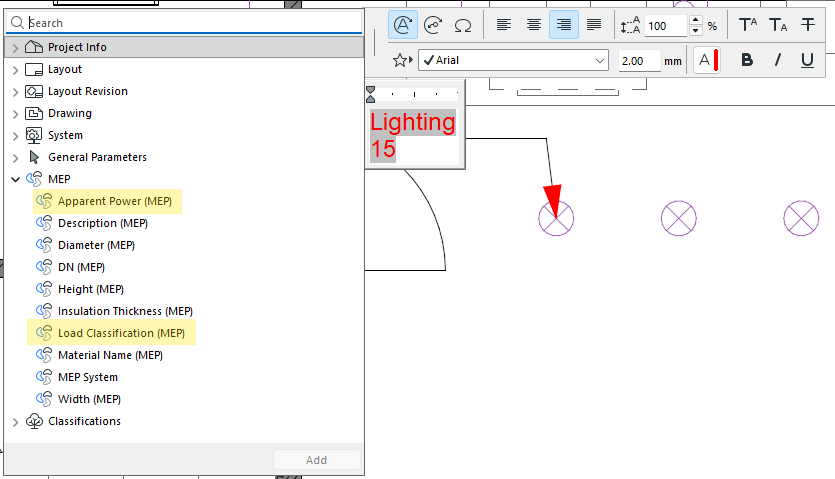

When labeling Electrical Devices, the following Autotext parameters are available in the MEP category.



The Autotext parameters return the following values:

  • Apparent Power: The Apparent power value specified for the Electrical Device.
    Note: If the Apparent Power checkbox is unchecked, the returned value is 0
  • Load Classification: The Load Classification value specified for the Electrical Device.
