Energy Model Review Palette

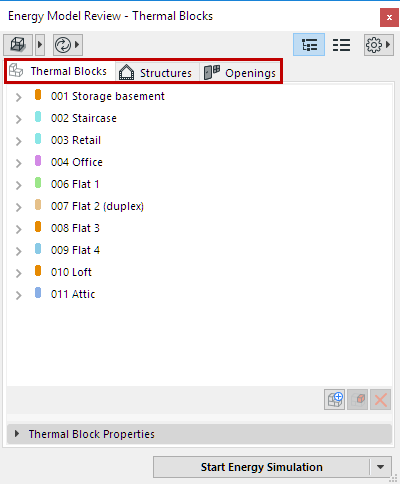

The Energy Model review palette is the main user interface of Archicad’s Energy Evaluation. It contains three tab pages that display input data for the building energy simulation. Use the tab pages to edit as well as to add information to this calculation input data.



Besides the three main tab pages, the Energy Model Review palette also contains:

  • General function buttons
  • BEM visualization options
  • BEM update options
  • Tab page view switch
  • Links to the Additional Energy Simulation Input dialogs
  • Tab-page specific functions: See the following sections for details.
