Model View Options for Construction Elements

Construction Element Options

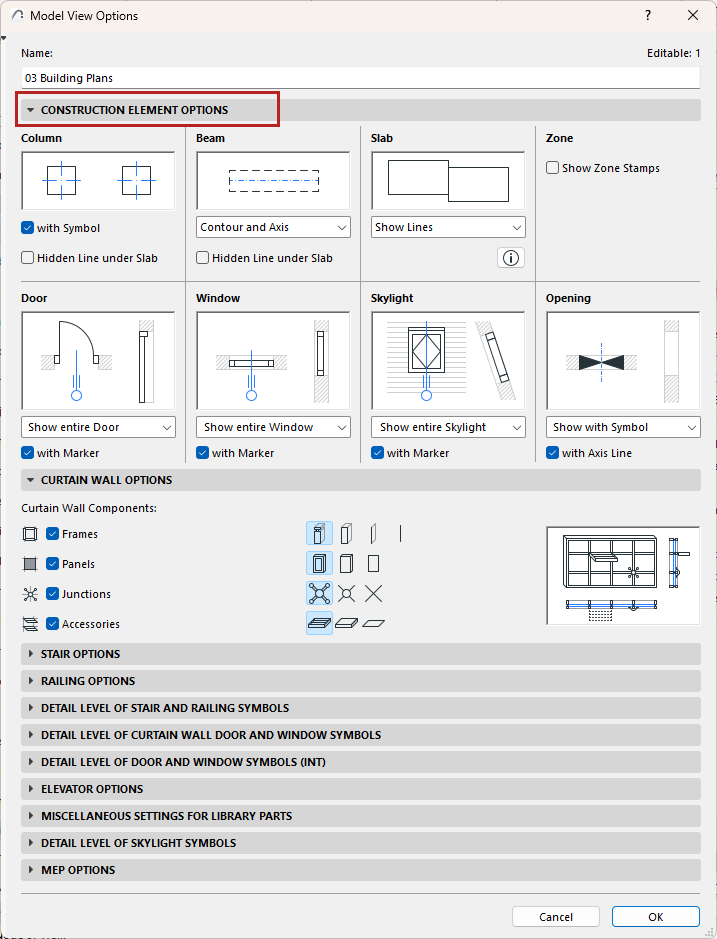

To access this panel, go to Document > Model View > Model View Options.

For general information, see Model View Options.



A preview window next to each settings group indicates the result.

Column

  • Check with Symbol to display the symbol chosen in Column Settings (Floor Plan and Section panel > Floor Plan Symbol) for each column.
  • Hidden Line under Slab: Check this to display Columns underneath Slabs, using Hidden Line. (Define Hidden Line attributes in Column Settings.)

Beam

  • Contour and Axis
  • Axis Only
  • Contour Only
    Note: You can override the Axis/Contour settings for individual Beams in Beam Settings (Floor Plan and Section Panel).
  • Hidden Line under Slab: Check this to display Beams underneath Slabs, using Hidden Line. (Define Hidden Line attributes in Beam Settings.)

Watch the Video

Slab

For adjoining Slabs (with identical top surfaces in the same plane):



Choose an option to display or hide the dividing line.

ShowLines.png   EliminateLines.png   UseHidden.png

  • Show Lines
  • Eliminate Lines
  • Use Hidden Lines

Watch the Video

Zone

  • Show Zone Stamp: Check this box to display Zone Stamps in your project. (Off by default. Zones are placed with associated Labels instead.)

Door/Window

Set these options separately for Doors and Windows.

  • Show entire Door/Window: Doors/windows will be displayed with the appropriate symbol on the Floor Plan and in Section-type views.

    with Marker: Check this box to display doors/windows with Markers (if assigned in the Settings dialog box.)

  • Show Opening Only: The place of the doors/windows (but not the doors/windows themselves) will be indicated by openings in the walls, in both Floor Plan and Section views.

    with Contours: The door/window openings shown on the Floor Plan will include contours.

  • Hide on Floor Plan: No placed doors/windows or openings will be shown on the Floor Plan. (In Section-type views, openings only will be shown.)

Skylight

  • Show Entire Skylight: Skylights will be displayed on the Floor Plan and in Section-type views, in accordance with the Floor Plan Display preferences of the host Roof or Shell.

    with Marker: Check this box to display Skylights with their Markers (if any Markers are assigned in the Skylight Settings dialog box.)

  • Show Opening Only: The place of the Skylights (but not the Skylights themselves) will be indicated by an opening in the Roof/Shell, on both Floor Plan and Section views.
  • Hide on Floor Plan: No placed Skylights or Skylight openings will be shown on the floor plan. (In Section-type views, openings only will be shown.)

Opening

  • Show with Symbol: Openings displayed on the Floor Plan and in Section views, together with their symbol.

    with Axis Line: Also display the axis line.

  • Show Opening Only: No Symbol is displayed, but you can optionally display the axis line.
  • Hide: Openings hidden in all views (including Floor Plan, 3D and Section)
