Reveal Settings

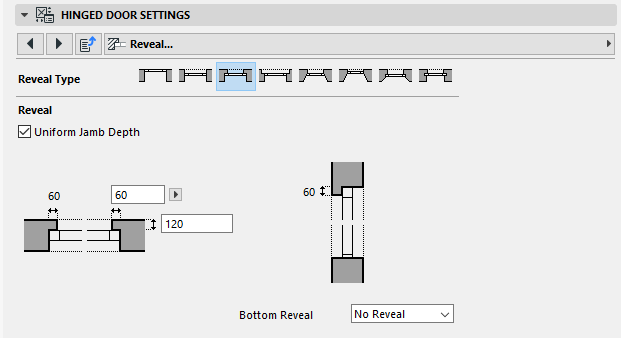

The following is a description of the Reveal tab page of the Custom Settings Panel of Door or Window Settings, from the INT Archicad Library.

Use this tab page to choose a Reveal Type and to set its parameters, such as Head and Jamb dimensions and Reveal Depth.

  • You can also choose a Reveal Type and set Reveal Depth on the Wall Opening tab page.
  • Reveal Depth is also set on the Preview and Positioning Panel.
