Automatic Export Mapping of Manufactured Profiles (Structural Analysis Format)

These improvements were introduced as part of ARCHICAD 24 Update 3.

Use a predefined or customized Excel database file to automatically map Manufactured Profiles to SAF Cross Sections at export. (In ARCHICAD 24, this feature was implemented for Cross Section import only.)

This easy method saves you time and effort compared to mapping by hand. The same database file can be used at import, export, or both.

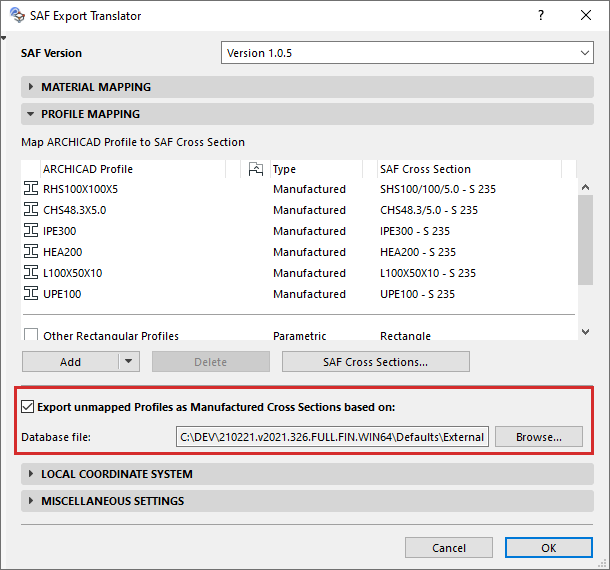

Graphical user interface, text, applicationDescription automatically generated

See Automatic Mapping Based on Database File (Export ARCHICAD to SAF).
