For any selected Route element: click an edge, node, or reference line to access pet palette commands.

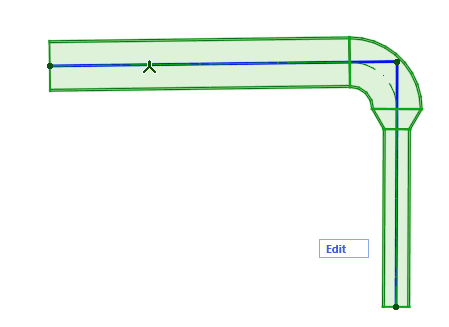

Insert new node
From the reference line:
1.Choose Insert new node.
2.Drag to create a new node and change the Route shape.

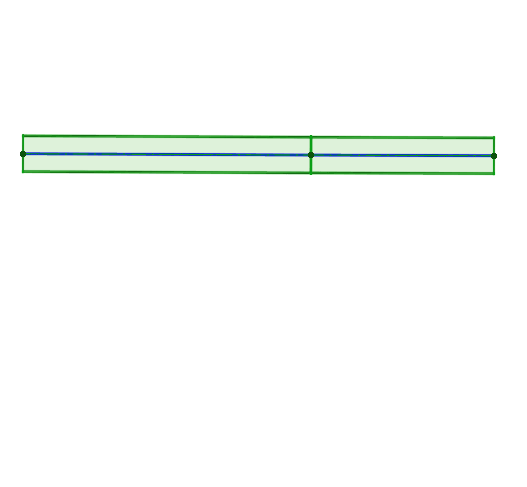

Move Node
Available for a node between two adjacent straight segments.
Drag the connection node, or enter values in the Tracker. This modifies the segment length.

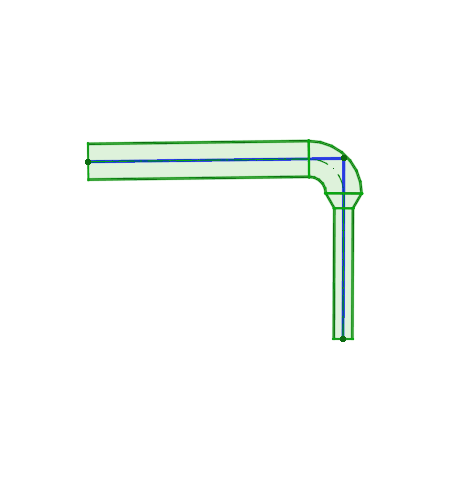

Elevate Route (Floor Plan)
Enter the value by which you wish to elevate the Route.
Elevate Route (3D)
Use the Drag command to change Route elevation on the Z axis.

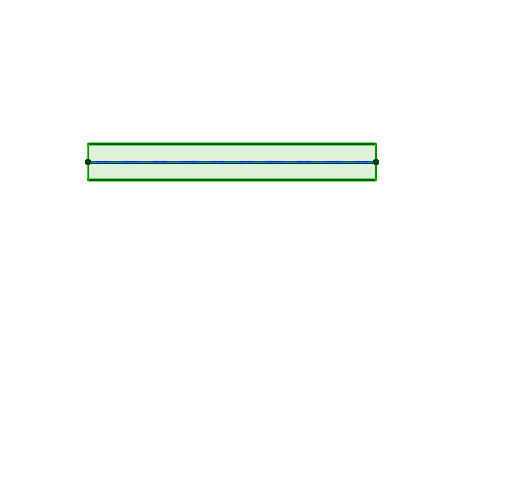

Continue Route
Available at the end of an unconnected straight segment.
Flexible Duct: Move node
Click a node of the Flexible Duct.
Choose Move Sub-element, then drag the node.

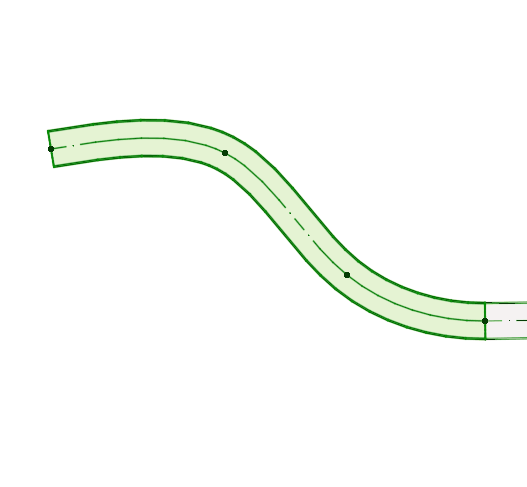

Flexible Duct: Insert new node
Click on the centerline of the Flexible Duct.
Choose Move Sub-element, then click the centerline to create a new node.
