Select Connected MEP Elements (Command)

NOT AVAILABLE in ARCHICAD STAR(T) Edition 2022

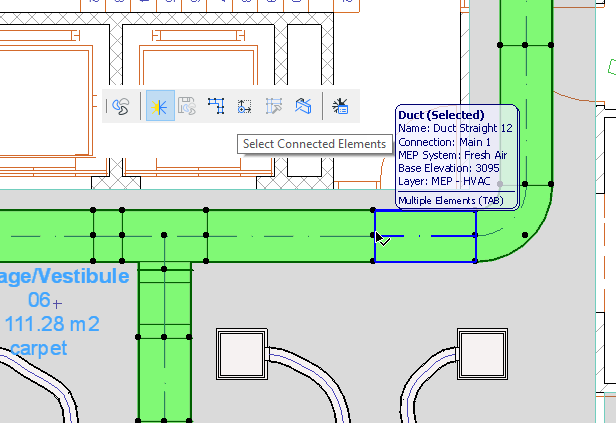

1.Use Edit > Select Connected MEP Elements (or the shortcut from the MEP Engineering Toolbar).

2.Move your cursor to any connection point on any placed MEP object. All connected MEP elements from that point are pre-selected.

3.Click to select these connected MEP elements.

Related Topic:

Edit MEP Selection Set (Command)
