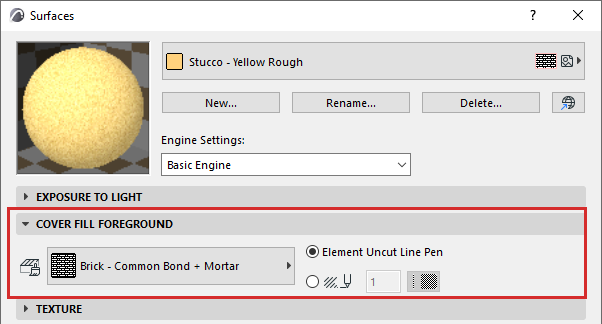

Surface Cover Fill Foreground Panel

(Options > Element Attributes > Surfaces)

Choose a Cover Fill foreground for the chosen surface.

Notes:

–Only Fills defined as Cover Fills are available. (See Fill Categories.)

–This Cover Fill does not affect PhotoRenderings, so the Preview window (generated by the chosen PhotoRendering engine) will not reflect the modifications you make in this panel.

•Check the Element Pen radio button to display the vectorial pattern in the color assigned to the uncut line pen.

•Alternatively, choose any other color from the pencolor pop-up.
