Move/Rotate/Reset Reference

These three command icons are available from the Trace & Reference palette:


From left:

Move: Click drag the Reference to another location.

Rotate: Click to rotate the Reference.

Reset: Use this icon if you want to reset the Reference to its original default position after you have moved it.

Note: The same commands are available from the context menu by right-clicking into any window showing a Reference; and from the Standard Toolbar’s pop-up list of Reference commands.

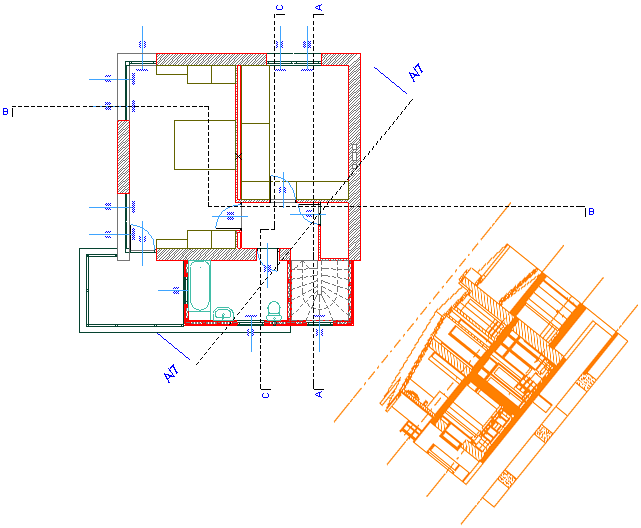

In the image below, a Section viewpoint is displayed as a Reference and rotated alongside the Floor Plan that contains the Section marker:


Drag/Rotate commands applied to the Reference will be reflected in the Tracker’s coordinate data (coordinate data are calculated according to the Active’s coordinate system, not the Reference’s.)
