3D Document: Floor Plan Projection
Create this type of 3D Document based on a projection of the Floor Plan. Define the projection by setting a 2D cut plane height and defining projection direction either upwards (toward the ceiling) or downwards (to the floor). This is useful, for example, to display the load-bearing structures on a slab plan, or a reflected ceiling plan. Use it also to create shaded Floor Plan views for presentation/interior design.

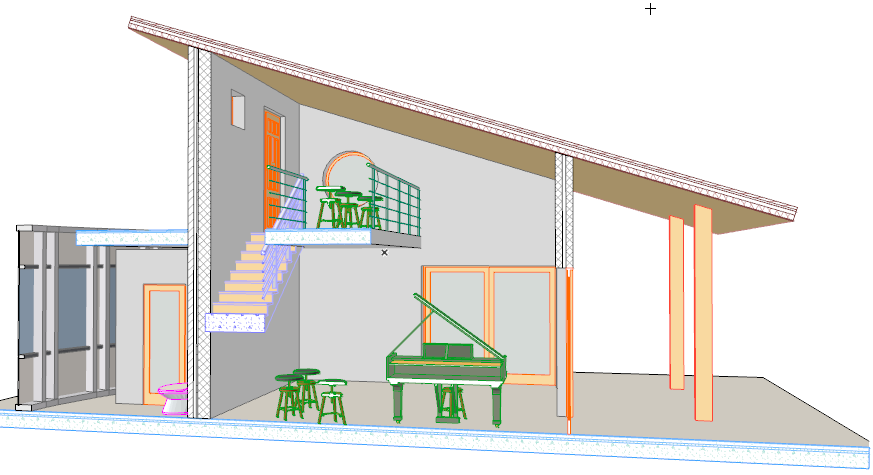

3D Document: 3D Projection
This 3D Document has its source in the 3D window. Specific parameters and options affecting 3D window display (such as projection and filtering/selection of elements) will affect 3D Document display.

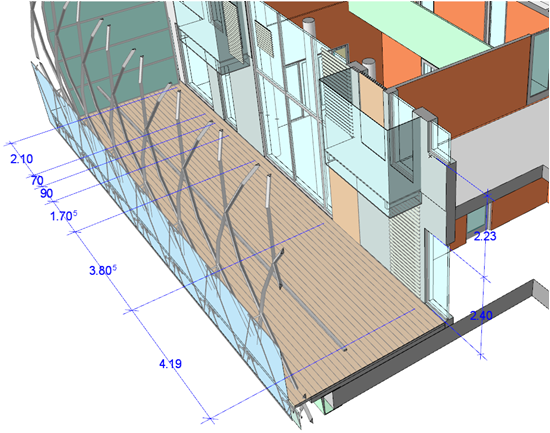

To add dimensions, just use ARCHICAD’s dimensioning tools, plus certain dimensioning functions that are available only for 3D Documents.
The 3D Document Viewpoint
The 3D Document is a viewpoint which appears in the Navigator Project Map.
You can also access 3D Documents through the Go command of the Mini-Navigator Toolbar, or from the Window > Navigate > 3D Documents menu, or from the Window menu.
In many respects, the 3D Document is analogous to the Section viewpoint: it is an integral part of the ARCHICAD model, and its model elements are rebuilt automatically or manually, depending on its status.
In the 3D Document, you can select model elements and access their settings dialog boxes to make changes in the model, but you cannot edit them graphically or create new model elements.
