Find and Select Text Blocks/Labels

Use the Find & Select function to locate text blocks or label texts whose content matches or contains any given text string.

See Find and Select Elements.

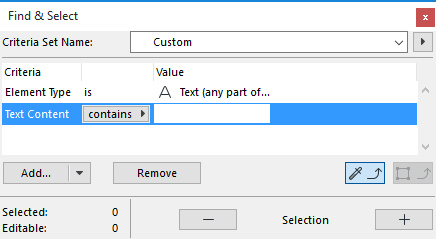

1.In the Find & Select dialog box, choose either Text or Label as the Element criterion.

2.As the next criterion, choose “Text Content.”

3.As the value, enter any desired text string.

–to find and select text fragments, choose “contains.”

–to find exact text matches, choose “is.”

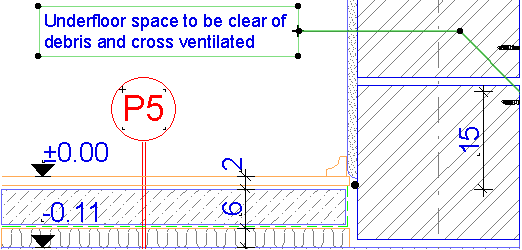

4.Click the Plus button to execute the Find & Select function. In this example, all Text Blocks or Labels in the active window which contain the entered text will be selected.

See also Search for Elements by Label Text.
