Republish Hyper-model

See also Republish Selected Items for BIMx.

To republish all of an existing Hyper-model, do one of the following:

Select the Hyper-model from the Publisher, and use the Publish button to republish part or all of it.

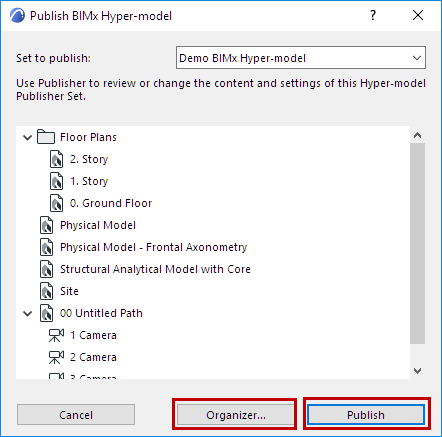

Use File > Publish BIMx Hyper-model. In the appearing dialog box, choose the desired Hyper-model.


Click Publish to republish it unchanged; or

Click Organizer to access the Organizer and modify the contents of the Publisher Set. In this case, you will follow the steps detailed at: Create BIMx Hyper-Model from Publisher.

Republish Selected Items for BIMx

When republishing a Hyper-model, you may wish to republish only certain items, to save publishing time. There are several ways to do this:

Publish Selected Items to merge them with the previous Hyper-model

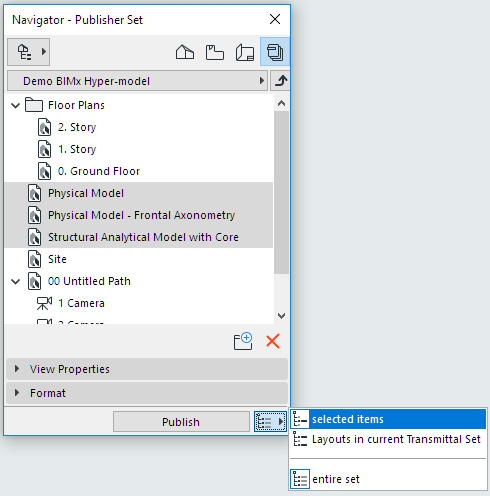

If you choose Selected Items in Publisher, ARCHICAD will publish only the selected items (layouts) and will merge these layouts into the previously published full hyper-model at the location you previously saved it.


You can then open this revised Hyper-model. If you open it on a mobile device, the BIMx app will recognize the updated contents. You will be notified of the changed items, and you can update the corresponding items of your existing Hyper-model on BIMx, one by one.

This method reduces publishing time (republishes selected items only), but you have to move the whole Hyper-model to the BIMx app.

Publish Selected Items as a New Hyper-model

Before publishing, remove the previously published Hyper-model from its saved location. In the Publisher, choose Selected Items. ARCHICAD will publish only the selected items as a new, smaller Hyper-model, in place of the one you deleted (or moved).

If you open this revised Hyper-mode on a mobile device, the BIMx app will recognize the updated contents. You will be notified of the changed items, and you can update the corresponding items of your existing Hyper-model on BIMx, one by one.

This method reduces publishing time (republishes selected items only), and you only have to move a relatively small Hyper-model to the BIMx app.
