Trace Point Cloud to Create Model Elements

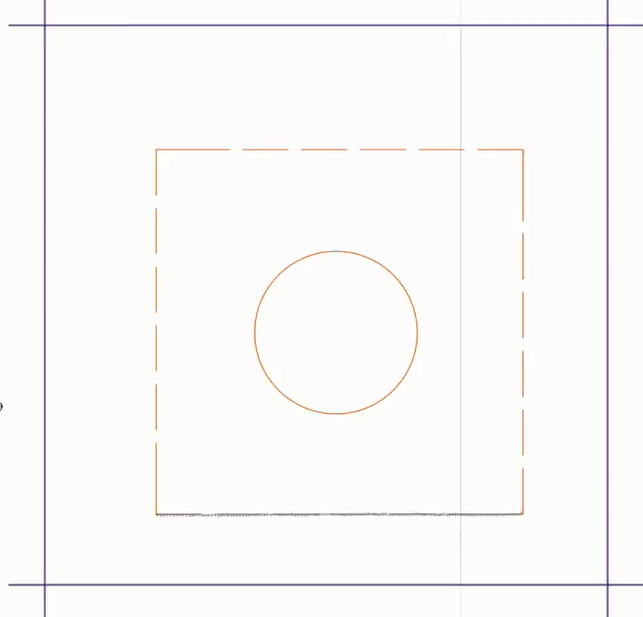

Here, we have used line tools to trace the contours of Point Cloud shapes on the Floor Plan.

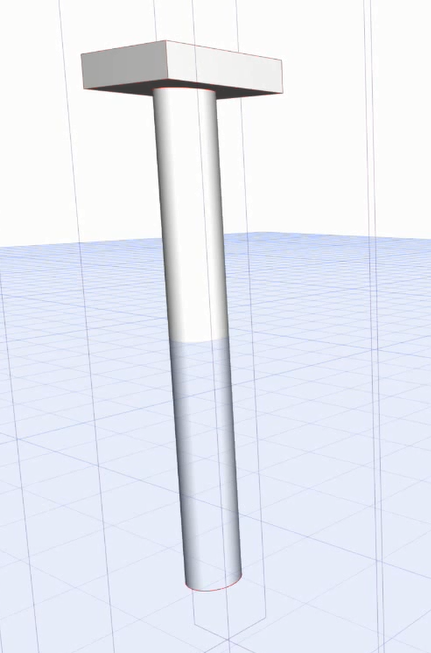

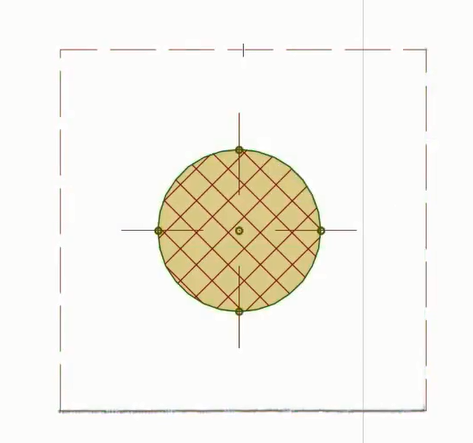

They can be transformed into model elements using the Magic Wand.

ContourSlabColumn.png     PointCloudElements3D.png
