Threshold Settings

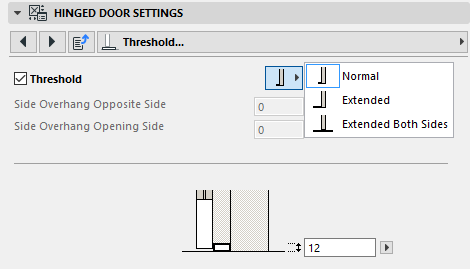

The following is a description of the Threshold tab page of the Custom Settings panel for a “Hinged Door”, with sidelight and transom, from the INT ARCHICAD Library.


Use the Threshold Type pop-up to choose a threshold.

Threshold Settings include the Threshold Thickness and - for Extended threshold types - the nosing and side overhangs on either side of the door.
