Natural Ventilation

The following is a description of the Frame Style and Dimensions page of the Custom Settings Panel of Door or Window Settings, from the INT ARCHICAD Library.

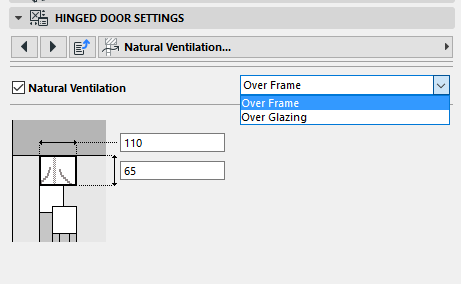

Natural Ventilation: Check this if the opening uses natural ventilation, then define its position: choose either “over Frame” or “over Glazing.”

In the fields below, define the height/width of the ventilation component profile (for each sash, if applicable.)

Set fill attributes for the Ventilation profile (in Section views) on the Floor Plan and Section page.

See Floor Plan and Section Tab Page (Door/Window Settings)
