Door Leaf Type

The following is a description of the Door Leaf Type tab page of the Custom Settings panel for a “Hinged Door”, with sidelight and transom, from the INT ARCHICAD Library.


Door Leaf Type

Scroll through the preview panel to find a leaf style that suits your needs. Most of these are predefined; in some cases, you can adjust the width of the frame.

Grid-Style Panels

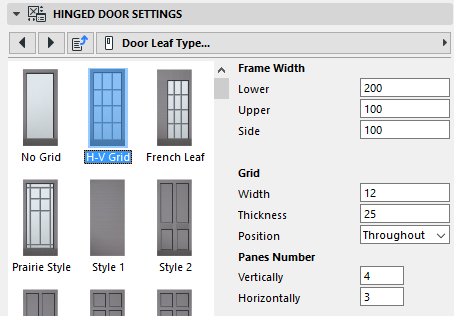

Choose the Grid style (H-V Grid, French Panel or Prairie Style) if you wish to specify the number of horizontal and vertical panes and the mullion configuration. For these panel styles, set the Position: place the mullions inside or outside the door, or run them through on both sides (“Throughout”).

Custom Door Leaf

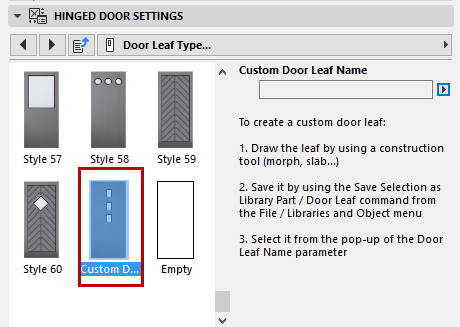

If you have created a Custom Door Leaf, choose the Custom style to apply your leaf to the door.


For information on creating a custom door panel, see Create Custom Components for Doors, Windows, Curtain Wall, Stair, Railing.
