Add new surface from catalog

Use this to replace the current surface with a surface imported from the Catalog.

1.Open Options > Element Attributes > Surfaces

2.Click the New... button

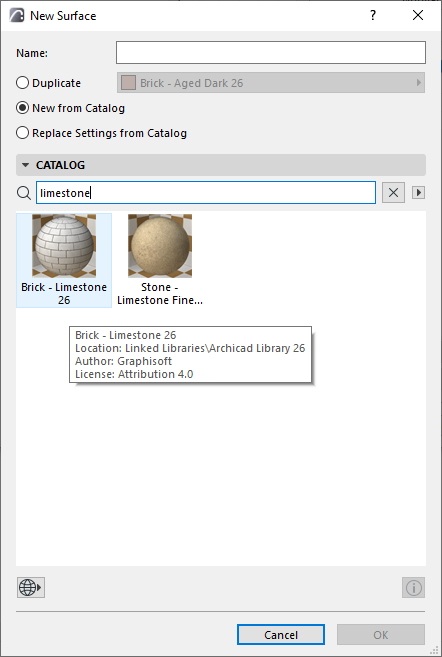

3.Choose New from Catalog


4.Browse or search the catalogs to choose a surface.

See Search for surfaces in catalog.

5.Click OK.

The new surface attribute is added to your project

Any associated texture file is added to your Embedded Library, and any fill (vectorial hatch) is added to the project’s fill attributes.
