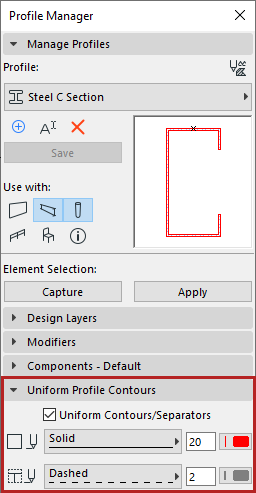

Apply uniform lines and pen colors to cut lines and to all separator lines at once. (This panel is active only if Profile Editor is open.)
Click Save, then view the feedback in the Preview window of Profile Manager.
Contours: Choose a uniform line type and pen color for all contour lines (outer lines) of the profile element.
Separators: Choose a uniform line type and pen color for all of the separator cut lines (inner lines) of the profile element.
Notes:
–Lines that separate two fills having the same Building Material will not be eliminated.
–Edges customized to Off (Show Cut Line is Off; see below) will not apply uniform contour settings.
