Edit Offset Modifier

Topics in this section

Reassign Dimension anchor

Add/Remove Edges to One Offset Dimension

Add Dimensions to One Offset Modifier

Two Connected Modifiers

Remove Edges or Entire Dimension

Delete Modifier

Rename Modifier

Related Topic

Create New Offset Modifier - Example

Offset Modifiers: Tips and Tricks

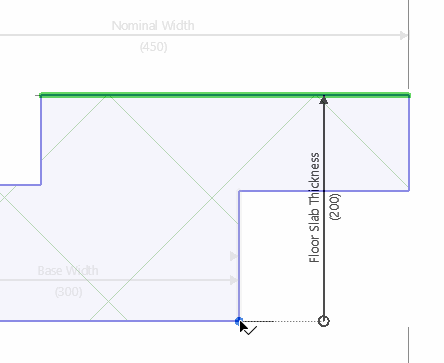

Reassign Dimension anchor

1.Activate the modifier in Profile Editor (click the Offset Dimension in Profile Editor, or select it in the Modifiers list of Profile Manager)

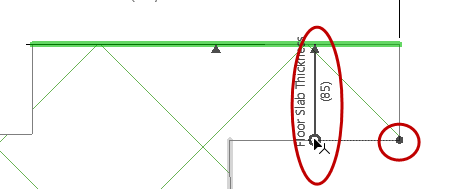

2.Check the feedback to see the edge/node anchor.


3.Click the Dimension end you want to redefine.

4.Move to another node or edge and click to reassign the Dimension anchor.


Add/Remove Edges to One Offset Dimension

You can link multiple edges to a single Dimension. All edges will move together, at the same time.

In this example, the existing modifier is called “Top”.

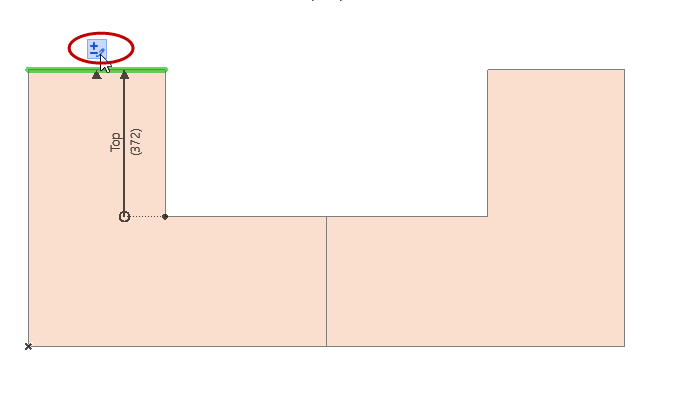

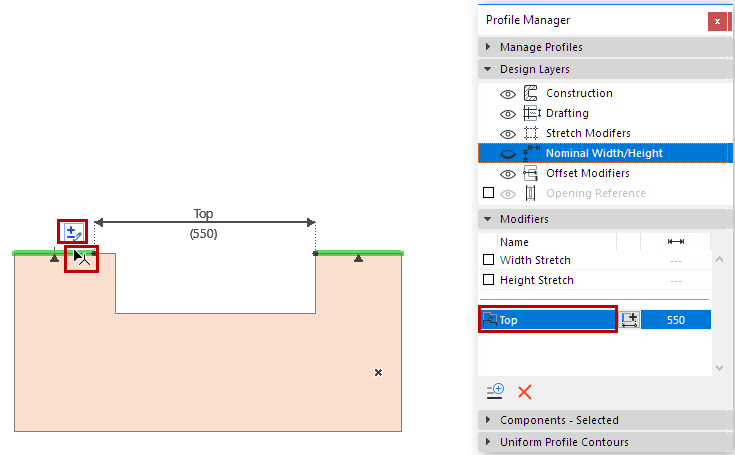

1.In Profile Editor, hover over the Dimension or an assigned edge of the Top modifier to see the grip.

2.Click the appearing grip: Add/Remove Edge.

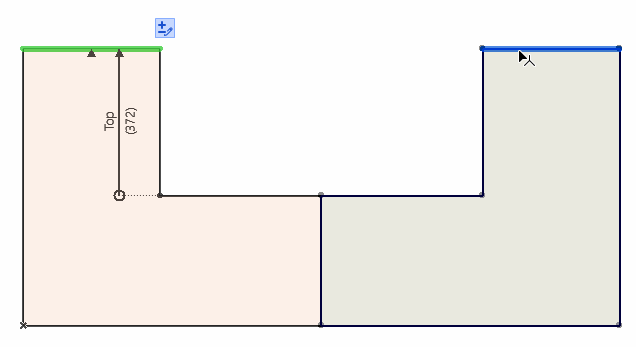

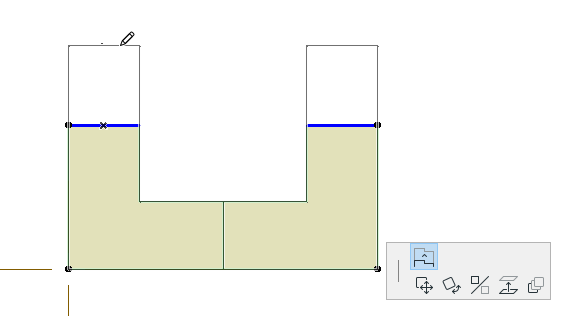

3.As you move the cursor, the eligible edges (initially shown in black) are highlighted in blue. Click to choose an edge.

4.A second click defines its direction.



5.The second edge is added to the existing Dimension.

Add Dimensions to One Offset Modifier

You can add multiple dimensions to the same Offset Modifier. Every subsequent dimension will have the same length. This allows different edges in the same modifier to have dedicated anchors - in the case where those anchors are moved by other modifiers.

1.In Profile Manager, select the existing modifier (Top).

2.Click the Add Dimension icon.

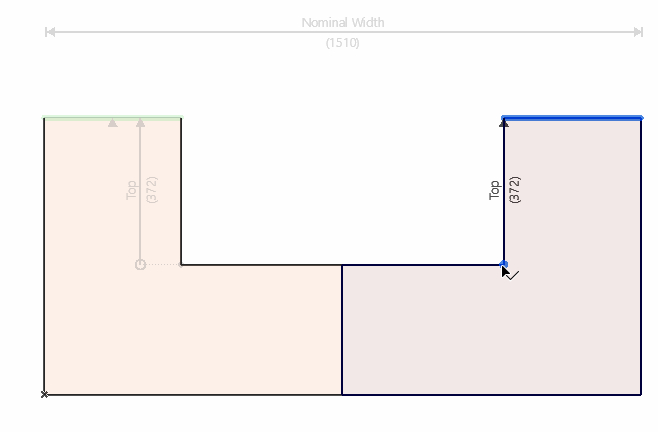

3.As you move the cursor, the eligible edges and anchor nodes are highlighted in blue. Click to choose an edge, then anchor the dimension in the usual way. Its dimension length is the same as the existing one defined in the modifier (set by the first dimension).


4.The resulting single modifier controls two, separately anchored edges.


Two Connected Modifiers

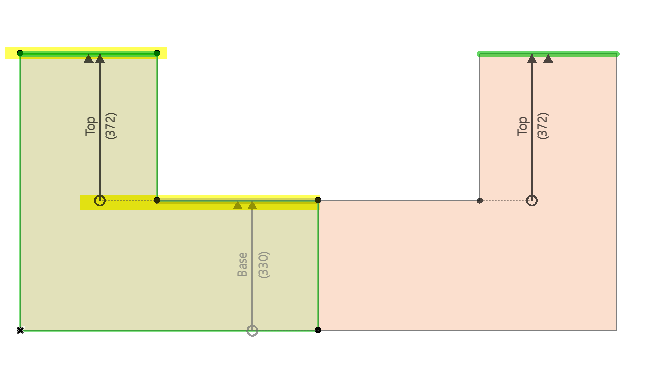

In this example, the “Top” Offset Dimension on the left side is anchored to an edge which itself is another modifier (Base). Note that the right-side “Top” dimension has its own anchor.

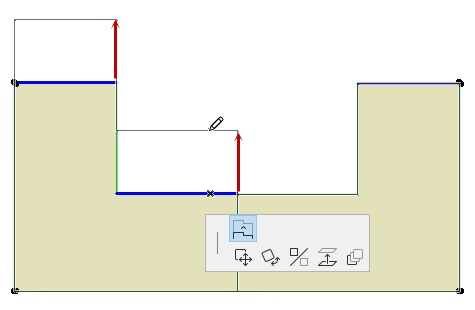

If an anchor moves, so will the dimension which it anchors. In this case, if the Base is offset, the left-side Top dimension (anchored to the Base) also moves.

TopBaseConnectionMove.png   TopBaseConnectionDone.png

The right-side Top edge, however, remains in place: its anchor was not moved.

Remove Edges or Entire Dimension

1.In Profile Manager, activate the modifier you want to edit; or click a grey Offset Dimension to activate and select it

2.In Profile Editor, hover over the edge or dimension.

3.Click the appearing grip: Add/Remove Edge.

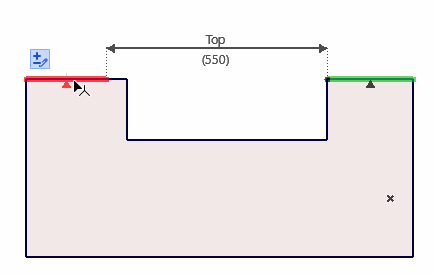

4.Hover over the edge so that it turns red: click to delete.


The edge is deleted.

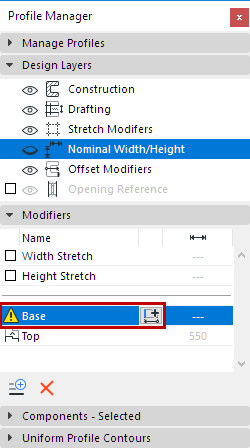

If you hover over the last edge or dimension, the entire dimension and edge will be highlighted in red. When all dimensions in a modifier are deleted, that modifier gets a warning notice in Profile Manager.


If needed, click Add Offset Dimension to create a new Dimension and assigned edge for that modifier.

Delete Modifier

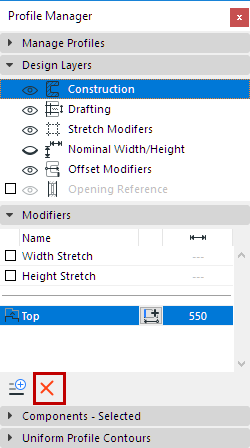

1.In Profile Manager, select the modifier to be deleted.

2.Click Delete.

All Offset Dimensions and assigned edges in that modifier will be deleted.


Rename Modifier

In the Modifier list, double-click its name to edit in place.
