Options for Editing Ruled Shells

The Ruled Shell has two profiles. One end of the first profile is distinguished by a larger hotspot; this represents the Shell’s base height.

Here are some editing possibilities for either profile:

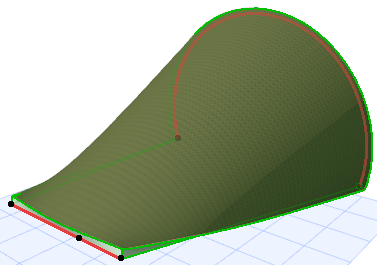

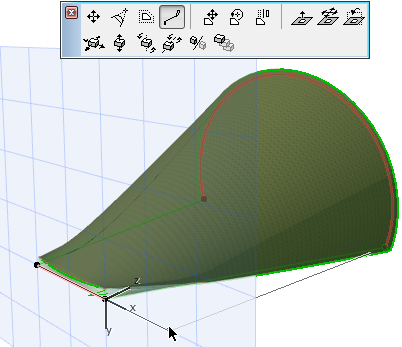

Continue Profile

For example, extend the straight-line profile to make that end of the Shell wider.

ContinueProfileRuled.png     ContinueProfileRuled2.png

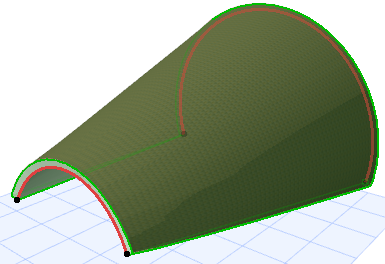

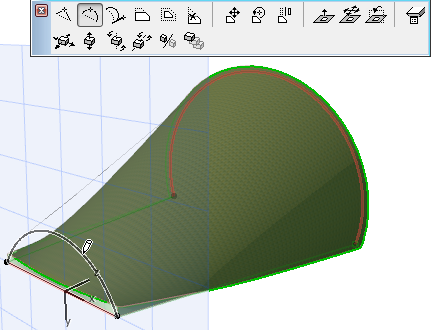

Curve Edge

CurveEdgeRuled1.png     CurveEdgeRuled2.png

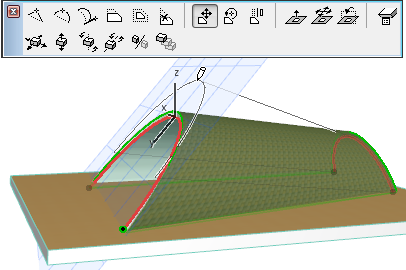

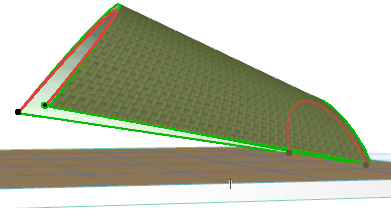

Drag Profile

Use this command to drag the profile within its own plane, in horizontal and/or vertical directions, to a new location.

DragProfile1.png     DragProfile2.png

Rotate Profile

Use these commands to rotate the selected profile in space.

MirrorShell1.png     MirrorShell2.png

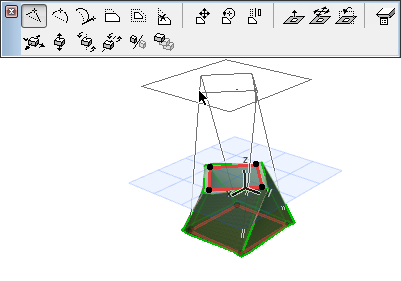

Elevate Profile Plane

Here you move the entire plane of the profile in the vertical direction.

ElevateProfile.png     ElevateProfile2.png

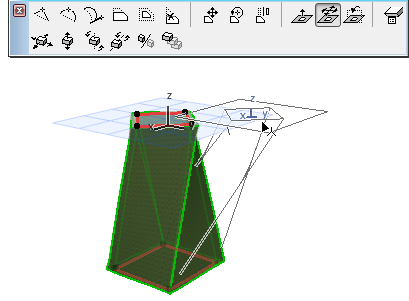

Drag Profile Horizontally

Here you take the profile plane and drag it horizontally.

DragProfileHoriz1.png     DragProfileHoriz2.png

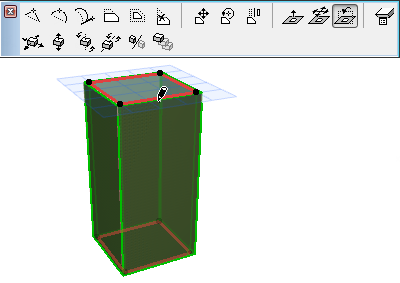

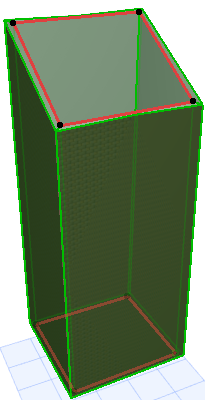

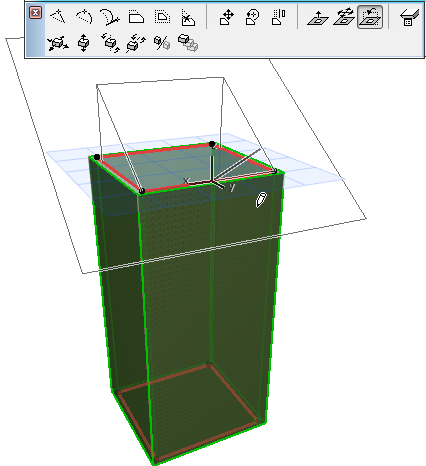

Turn Profile Plane


Click to enter the turning point. Then move your cursor to define the turn direction, and click to complete.

TurnPlane100191.png   TurnPlane2.png   TurnPlane3.png
