Basic Morph Editing: Curve Edge

1.Select a Morph.

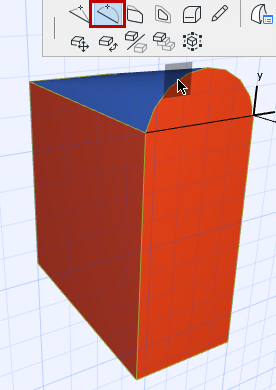

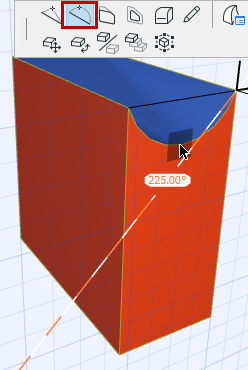

2.Click the edge you want to curve to bring up the Pet Palette, and choose “Curve Edge.”

3.Drag the cursor, or choose a different editing plane. The clicked edge, plus the adjoining face, will be curved along the chosen editing plane.

CurveMorphEdge1.png     CurveMorphEdge2.png

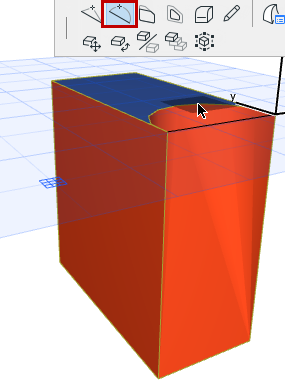

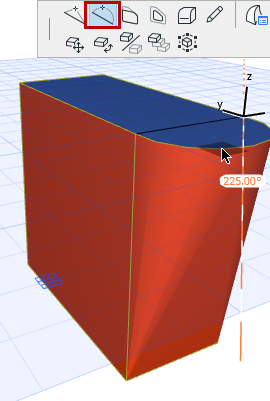

Here, the same operation done on a different Editing Plane:

CurveMorphEdge3.png     CurveMorphEdge4.png
