Edit Roof Ridge

You can modify the roof geometry of a Multi-plane roof by grabbing the ridge line at either endpoint or anywhere along the ridge line.

The pet palette offers three ways to edit the roof:

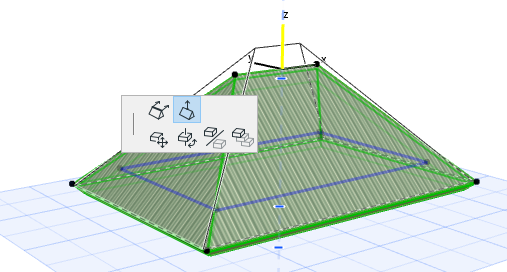

Stretch Horizontal Ridge

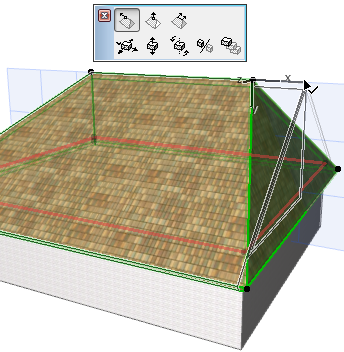

This option has a built-in “snap” when you get to the vertical point. If you click then, you will end up with a gabled roof plane.


Elevate Horizontal Ridge

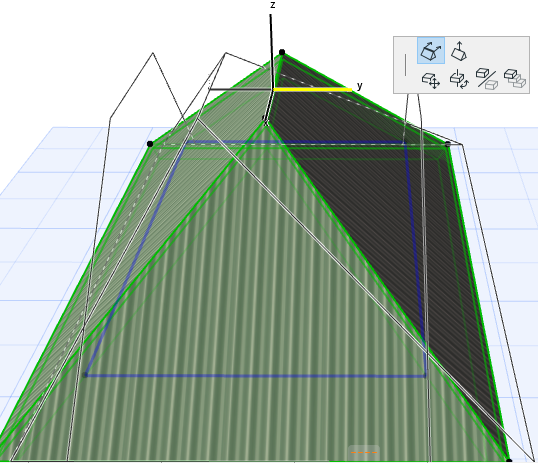

Drag Horizontal Ridge
