Simple Extruded Vault: Parallel to the Floor Plan

Use this method to place a vault-shaped Shell profile, then extrude it graphically.


The Shell’s profile here is always a half-circle (vault). (You can edit the profile later.)

1.Activate the Shell Tool and choose the extruded geometry method with simple input method.


On the Floor Plan or 3D Window:

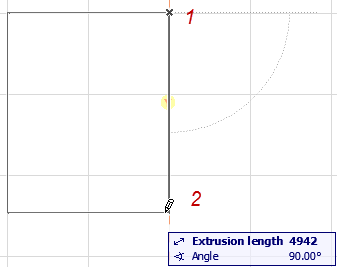

2.Click twice to define the Shell’s extrusion length.

3.Click a third time to define the width of the Shell Profile.

4.The Shell is complete.

ShellExtrude1.png      ShellExtrude2.png

ShellExtrudeDone2D.png      ShellExtrudeDone3D00178.png
