Display of Meshes

Mesh Structure

In the Floor Plan, only the outline and the ridges of the Mesh are shown.

Note: The Floor Plan outlines of Meshes and Slabs on remote stories (if they are shown on stories other than their home stories) are displayed using the line type set in Project Preferences > Legacy.

In 3D, depending on the construction method chosen in the Info Box or Mesh Settings, the Mesh can be displayed in three ways:


Surface Only

Surface with Skirt

Solid Body

Display of Ridges

There are two types of ridges in a Mesh: user-defined and generated ridges. Each generated ridge connects two Mesh points at different heights that are not already connected by a user-defined ridge.

User-defined ridges are always displayed.

If the Show All Ridges option is selected, Archicad will also show the ridges generated through the connecting Mesh nodes. (This control is located in Mesh Tool Settings). Generated ridges are shown only if they connect points that differ in elevation.


3D Appearance

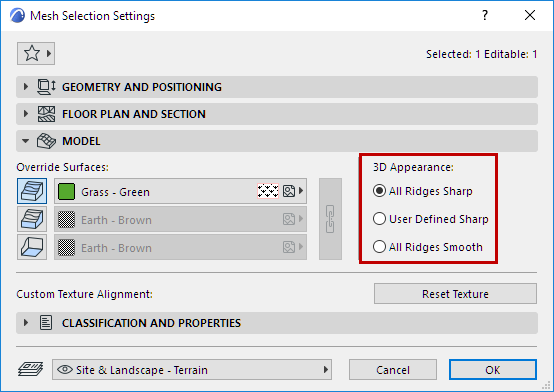

The controls of the Model panel of Mesh Settings defines whether the Mesh ridges are displayed as smooth or sharp.


All Ridges Sharp: Show the Mesh in the 3D window with sharply connecting triangles.

User Defined Sharp: Show the Mesh surfaces with sharply connecting user defined ridges, and with smoothly connecting surfaces everywhere else.

All Ridges Smooth: Show the Mesh with smoothly connecting surfaces.

If you choose All Ridges Smooth, only user-defined ridges will appear in 3D view.
