Segment Settings (Railing Tool)

A Segment is the part of the Railing between two Nodes (like a segment of a polyline).

A Segment has its own settings, which include the Railing Pattern and Segment Height.

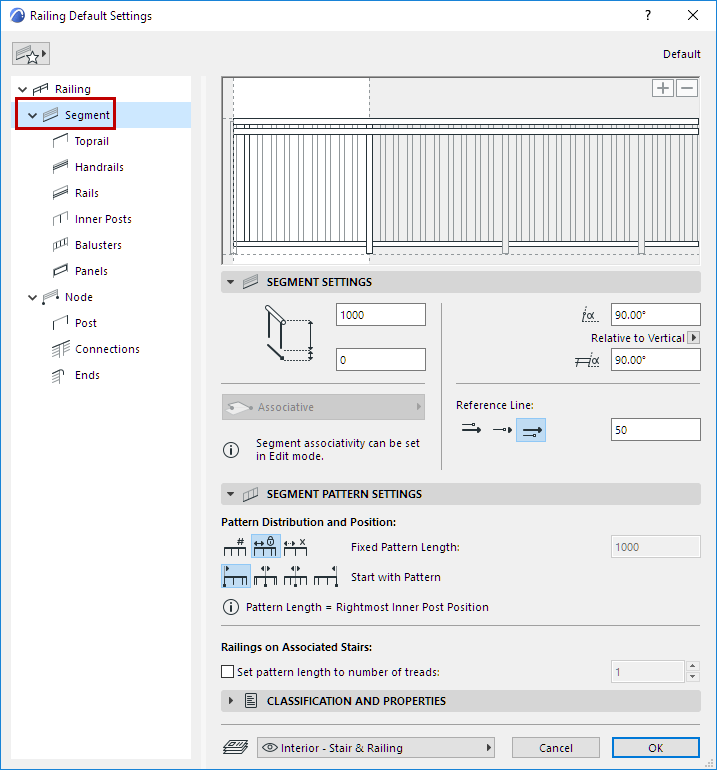

Use this page to configure the overall Segment parameters (including Segment height) and to set up a Pattern, consisting of various Rails, Posts, and Panels.
