Post Component Settings (Posts/Inner Posts/Balusters)

This panel is available in the Settings dialogs of all Post-type Railing components: Posts, Inner Posts and Balusters.

Available controls depend on the selected Post component (e.g. Built-in, Profiled, Revolved). Some of the key controls are described here.

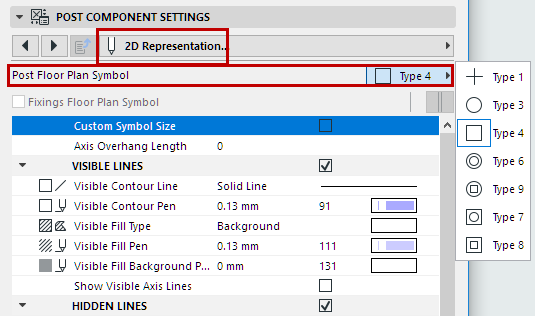

Post 2D Symbol Type

Select a Symbol Type on the 2D Representation tab page of Post Component Settings.


Post 2D Symbol Display

Set 2D display preferences for the Post component, using the controls below (for Visible and Hidden parts of the Railing).

See Railing Settings: Geometry and Symbol Display

Show/Hide Post’s 2D Symbol

By default, the visibility of Railing components in 2D views is defined at Document > Model View > Model View Options.

Customize Post Symbol visibility in Railing Settings. (See Railing Floor Plan Symbol Components.)

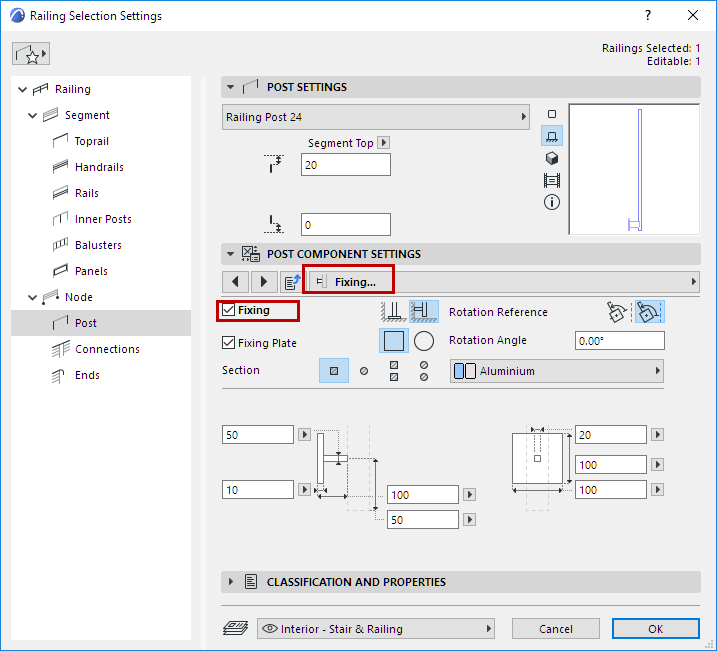

Show Fixing

Note: Not available for Balusters.

Use a fixing to attach the Post with a simple console. Click Fixing on the Fixing Settings tab page of Post Component Settings to access the settings, including size, profile and Building Material. (You can also open Fixing Settings from the Style and Dimensions tab page.)

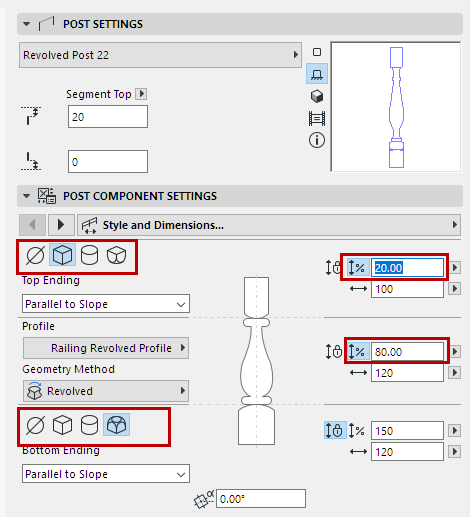

Revolved Post Options

For a Revolved Post, you have many customization options. View the Preview to get the idea.

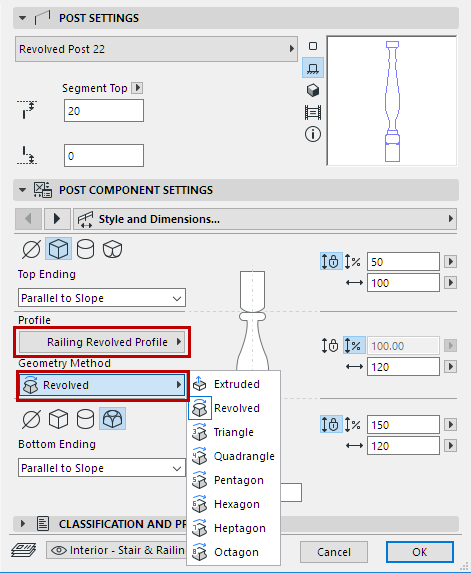

Choose a Profile (Middle Profile) for the center part of the Revolved Post

Choose a Geometry method


Add top and bottom parts to the post in a chosen Style

For each part of the post (Top, Middle, Base):

Set an absolute height for each post part, or

Click the Stretch icon for one or more of the post parts (Top, Middle, and/or Base) to stretch it by a certain percentage of the whole. (The total stretching will equal 100 percent.)

RevolvedPost.png     RevolvedPost3D.png
