Opening Display in 3D

By default: the Opening displays the host element’s surface, with no override.

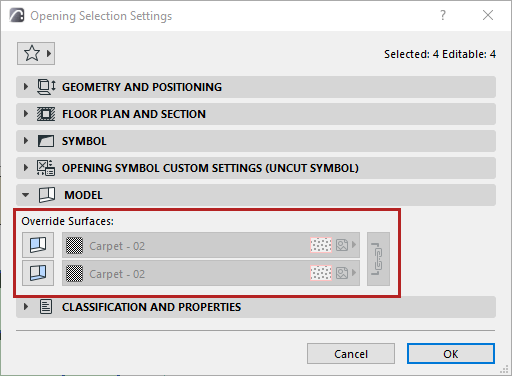

OpeningSurfaceDefault.png    OpeningSurfaceDefaultModel.png

Override Opening Surface

If needed, you can apply a different surface to the Opening extrusion and/or ends.

Extrusion: the sides of the Opening body, where it cuts through the host elements

Ends: one or two ends of a limited Opening body, where it meets but does not cut through the host element (e.g. niche or recess).

1.Select the Opening

2.Open the Override Surfaces control

in the Info Box, or

in the Model Panel of Opening Settings

3.Activate the toggle of the ends surface and/or extrusion surface

4.From the pop-up, choose the desired surface.

Note: Click the Chain icon (“Link Surfaces”) to apply the same surface to ends and extrusion.

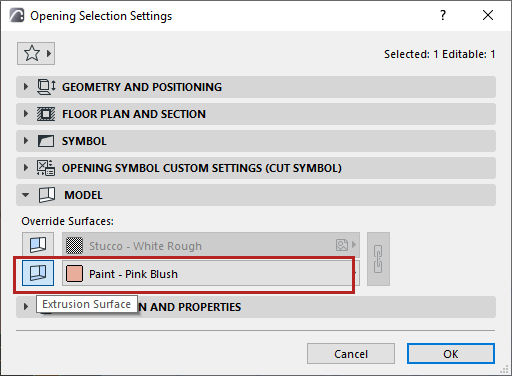

OverrideOpeningSurface1.png      OverrideOpeningSurfaceModel1.png

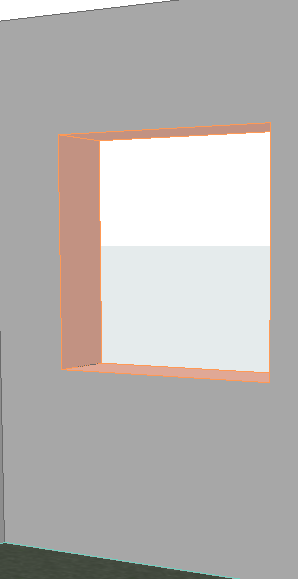

Override Opening surface - extrusion

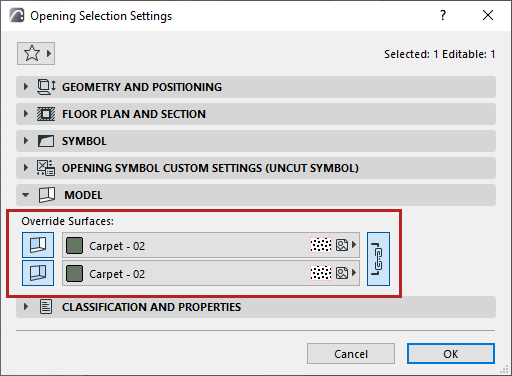

OverrideOpeningSurface2.png OverrideOpeningSurfaceModel2.png

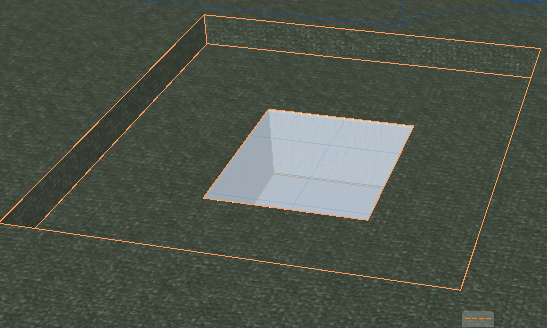

Override Opening surfaces - both extrusion and end
