On-Screen View Options for Openings

Turn these options with one of the following:

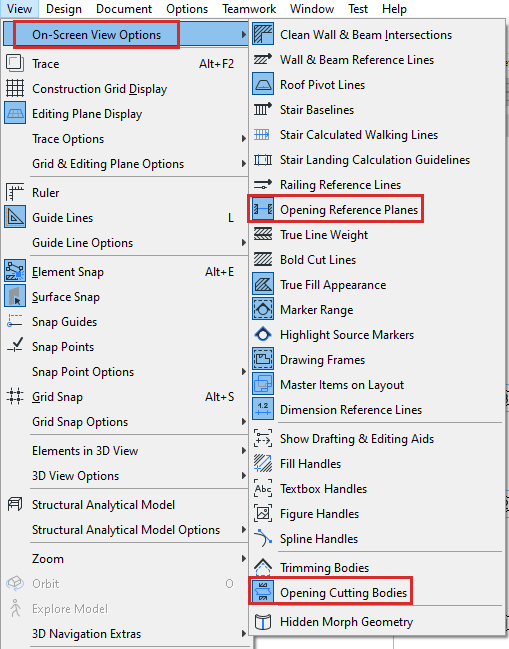

View > On-Screen View Options

the On-Screen View Options toolbar.

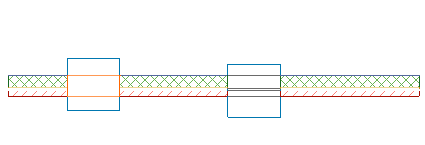

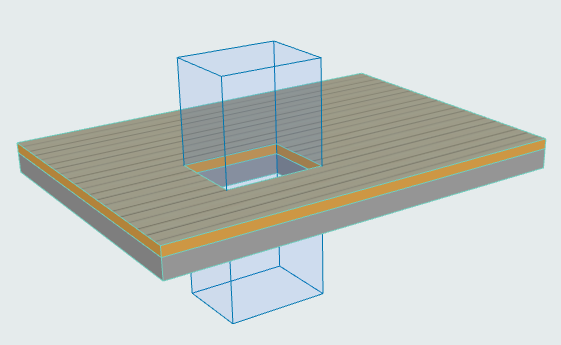

Opening Cutting Bodies

OpeningCuttingOn2D.png OpeningCuttingOn3D.png

Opening Reference Planes

 This toggle ensures that an Opening will have an on-screen display on the Floor Plan, even if it is located entirely outside of its associated host element.
