Create Openings from Selection

Use this command to transform selected Archicad construction element(s) into Openings.

A selected Archicad element will turn into an Opening if it collides with an eligible element (Wall, Slab, Mesh, Beam).

For example: Morphs, MEP elements, and Stair elements (with headroom On) are typically transformed into Openings.

Note: If the two intersecting elements do not collide (i.e. because of automatic intersection or Solid Element Operation), no Opening is created.

For example, an imported file may contain a multi-story Morph representing mechanical voids.

1.Select the element (here, the Morph).

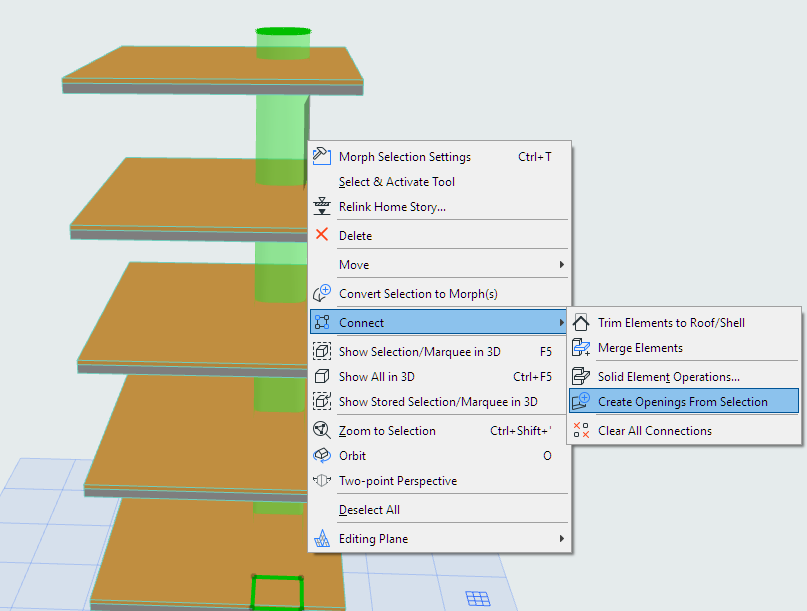

2.Use the Create Openings from Selection command

from the context menu

from Design > Connect menu

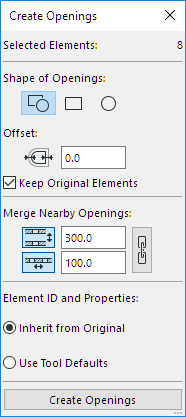

3.Set options in the appearing palette, then click Create Openings at the bottom of the palette.

CreateOpeningPalette.png   CreateOpeningsDone.png

Shape

Automatic: Openings will match the original element geometry as closely as possible

Rectangular or Circular

Offset

Optionally, add an offset to the Opening.

Keep Original Elements

Uncheck to delete the original elements.

Merge Nearby Openings

Check this to merge Openings that are closer than the tolerance distance defined here.

Merge lengthwise: This can be useful in parallel Walls that are close together, or Slabs on top of one another.

Merge sideways: For example, with MEP pipework, in which parallel pipes are very close to each other.

If you do not check this box, then a separate Opening is created in each host element.

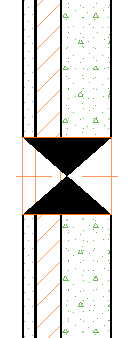

Merge nearby Openings

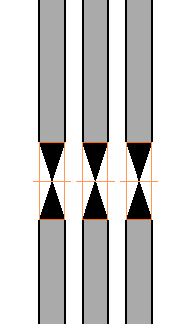

Do not merge nearby Openings

Element ID

For the newly created Opening element(s):

Retain the ID of the original element (e.g. MORPH-002), or

Assign a new ID based on Opening Tool defaults
