Note: Part of the Library Part Maker add-on. See Library Part Maker.
Level of Detail definition of MEP Objects
Selected 2D Detail Level |
Default LOD |
Substitute LOD 1 |
Substitute LOD 2 |
Substitute LOD 3 |
Full |
Full |
Medium |
Low |
System 2D bounding box |
Medium |
Medium |
Low |
Full |
System 2D bounding box |
Low |
Low |
Medium |
Full |
System 2D bounding box |
Selected 3D Detail Level |
Default LOD |
Substitute LOD 1 |
Substitute LOD 2 |
Substitute LOD 3 |
Full |
Full |
Simplified |
Schematic |
3D not shown |
Simplified |
Simplified |
Schematic |
Full |
3D not shown |
Schematic |
Schematic |
Simplified |
Full |
3D not shown |
Additional components/assignments
•For MEP objects, 3D Representation requires the use of the MEP Connection object (which can be found in MEP Library > MEP Connection), in order to facilitate the automatic connectivity of MEP objects.
•This MEP Connection component must be assigned to 3D Model Full.
•For Duct/Pipe Inline Flow Library Parts, there must be at least 2 MEP Connections, assigned to 3D Model Full. These must be placed on a single axis facing in opposite directions.

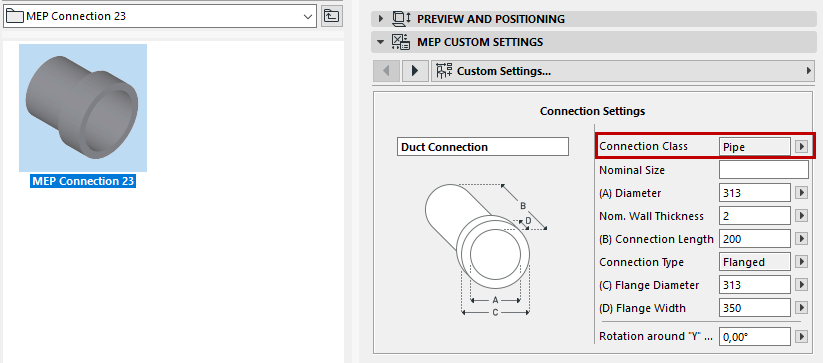

•When creating a Duct or Pipe MEP Library Part, make sure that the MEP Connection component is assigned the corresponding Connection Class: Duct or Pipe.
