Creating Doors and Windows

Note: Part of the Library Part Maker add-on. See Library Part Maker.

Level of Detail definition of Doors and Windows

Selected 2D Detail Level

Default LOD

Substitute LOD 1

Substitute LOD 2

Substitute LOD 3

Full

Full

Medium

Low

System empty opening

Medium

Medium

Low

Full

System empty opening

Low

Low

Medium

Full

System empty opening

Selected 3D Detail Level

Default LOD

Substitute LOD 1

Substitute LOD 2

Substitute LOD 3

Full

Full

Simplified

Schematic

System empty opening

Simplified

Simplified

Schematic

Full

System empty opening

Schematic

Schematic

Simplified

Full

System empty opening

Door/Window Component Origins

A special methodology applies in case of Door and Window Library Parts.

Component origins for 2D door/window symbols must be aligned with the center of door/window wall opening and the external edge of wall they will be placed in.

Component origins for 3D door/window models must be aligned with the bottom center of door/window wall opening.

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-05 at 09.09.12.png

Door Symbol with Component Origin at Hotspot

Definition of Door/Window Tolerance

LPM Assignment

Content shown with corresponding Model View Option (MVO): Detail Level of Door, Window and Skylight Symbols

2D Tolerance Full

Floor Plan Symbol Full

2D Tolerance Medium

Floor Plan Symbol Medium

2D Tolerance Low

Floor Plan Symbol Low

The Wallhole is the part cut out of the wall to accommodate the whole door/window structure.

Wallhole Width is equal to Unit Dimension Width plus any Horizontal Tolerance.

Wallhole Height is equal to Unit Dimension Height plus any Vertical Tolerance.

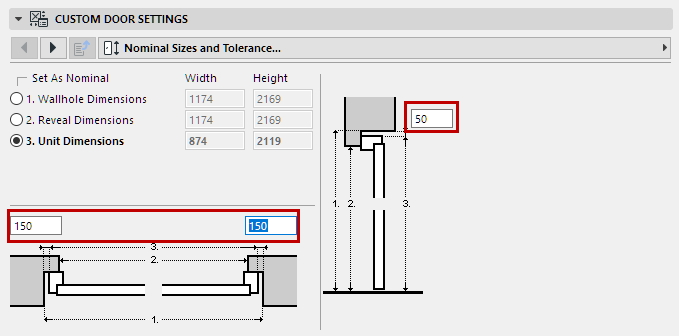

Macintosh HD:Users:rkalocay:Desktop:NominalSizes.png

Tolerance Values in Door Custom Settings

Design Principles of Tolerance

The tolerance 2D symbol must always be drawn (using Archicad 2D tools) on the left-hand side of the door/window 2D symbols, with the same width for all used 2D symbols in a door/window Library Part.

The 2D tolerance symbols will be automatically added to right, top and bottom door/window edges, and they will be parametrically adjusted to Wallhole edges. The 3D model will be created automatically, based on the tolerance width defined in 2D Symbol and the door/window frame thickness. The tolerance width and tolerance surfaces will be automatically added to the door/window user interface as parametric values.

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-06 at 15.01.59.png

Tolerance Displayed at Low, Medium and Full LOD Assignment

Opening Lines, Hinges and Handles

LPM Assignment

Content shown with corresponding Model View Option (MVO): Miscellaneous Settings for Library Parts

Opening Line Hinges Full

Show Opening Line (Hinges orientation, Full 3D)

Opening Line Hinges Simplified

Show Opening Line (Hinges orientation, Simplified 3D)

Opening Line Hinges Schematic

Show Opening Line (Hinges orientation, Schematic 3D)

Opening Line Handle Full

Show Opening Line (Handle orientation, Full 3D)

Opening Line Handle Simplified

Show Opening Line (Handle orientation, Simplified 3D)

Opening Line Handle Schematic

Show Opening Line (Handle orientation, Schematic 3D)

Design Principles of Opening Lines, Hinges and Handles

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-05 at 09.40.40.png

Handle Opening Line orientation


Hinges Opening Line orientation

LPM allows to define any number and directions of Opening Lines and/or Opening Operation symbols in 3D Models by using 3D Archicad tools. The 3D opening lines can be defined by Morph tool (set to the Line Geometry Method).

Macintosh HD:Users:rkalocay:Desktop:NBS OC:Manual:Screen Shot 2015-08-05 at 09.54.11.png

It is also possible to use e.g. the 3D Text Library Part (from standard Archicad library) to define any fixed text annotations.

Considering the varying standards for the direction of opening lines, LPM provides 2 sets of assignments that define opening line orientation as either “Hinges” or “Handle”.

The Opening Line Orientation control (available in Model View Options and the Library Part user interface) allow the user to flip their positioning as needed.

Positioning of Door/Window Handle Assembly

Note that the option for 3D Handle assembly is available for “3D Model Full” LOD only.

LPM Assignment

Content use

Handles Internal Full

Used for Handle assembly on internal face of opening

Handles External Full

Used for Handle assembly on external face of opening

LPM allows definition of any number and directions of Handle assembly types, separate for interior and exterior faces of an opening. The type of Handle assembly can be selected from standard Archicad types or any Custom Component Handle Library Parts (in loaded libraries).

Design Principles of Handle Positioning

Use the 3D lines that can be defined by Morph tool (set to the Line Geometry Method)

Macintosh HD:Users:rkalocay:Desktop:NBS OC:Manual:Screen Shot 2015-08-05 at 09.54.11.png

Definition (Morph line)

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-12 at 15.43.32.png

Morph Origin

The morph origin will be used as the anchor point (in 3D space, so the morph line must be positioned on door/window surface), and the direction of the line will be used as the Handle assembly’s orientation. The length of the line does not affect the final handle position or shape. The relationship of a morph line used for design and the final Handle model is illustrated below:

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-12 at 15.58.36.png

The assignment type will define handle orientation with regards to Internal or External face of a door or window.

See Door/Window Component Origins.

Door and Window Standard Fixtures and Fittings

The following standard Archicad library door or window parametric elements and functionality will be added to each door or window automatically:

Windows

Wall Opening – Reveal

Wall Opening – Wall Closure

Wall Opening – Wall Inset

Wall Opening – Masonry Arch

Wall Opening – Attributes

Fixtures & Fittings – Sill

Fixtures & Fittings – Board

Fixtures & Fittings – Casing Inside/outside

Fixtures & Fittings – Sunshade

Fixtures & Fittings – Custom Corner

Fixtures & Fittings – Attributes

Door

Wall Opening – Reveal

Wall Opening – Wall Closure

Wall Opening – Masonry Arch

Fixtures & Fittings – Threshold

Fixtures & Fittings – Casing Inside/outside

Fixtures & Fittings – Sunshade

Fixtures & Fittings – Attributes

System predefined parameters for Doors and Windows

Width – width of Door/Window set

Height – height of Door/Window set

Nominal Frame Thickness – frame thickness of Door/Window set

Orientation Displaying – If set to ‘Automatic’, Label Default Position and Label Reversed Position values will be used for Door/Window labels and in Interactive Schedules. If set to ‘Custom’, the value of Custom Orientation parameter will be used instead.

Custom Orientation – used in conjunction with Orientation Displaying parameter

Label Default Position – (set to ‘L’ for ‘Left’ by default) used in conjunction with Orientation Displaying parameter

Label Reversed Position – (set to ‘R’ for ‘Right’ by default) used in conjunction with Orientation Displaying parameter

IFC Operation – IFC operation definition

Surfaces > Door/Window Tolerance Outer Surface – outer surface of tolerance infill

Surfaces > Door/Window Tolerance Inner Surface – inner surface of tolerance infill

Surfaces > Door/Window Handle Surface – surface of Door/Window handle(s)

Pens > Opening Line Pen – pen of Door/Window opening lines
