LOD Recommendations

Note: Part of the Library Part Maker add-on. See Library Part Maker.

Recommended 2D Symbol Level of Detail

Consider the pen thickness and detail appearance at scale – too detailed 2D representations for larger scales might be difficult to read.

Examples of 2D Symbol Level of Detail

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-04 at 14.57.55.png

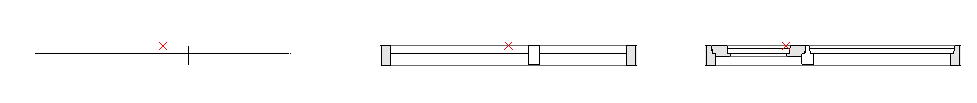

Window: Low, Medium, Full LOD Assignments

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-04 at 15.24.51.png

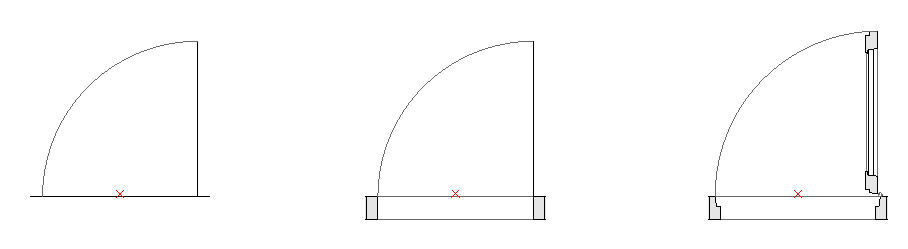

Door: Low, Medium, Full LOD Assignments

Macintosh HD:Users:rkalocay:Desktop:Screen Shot 2015-08-04 at 15.11.28.png

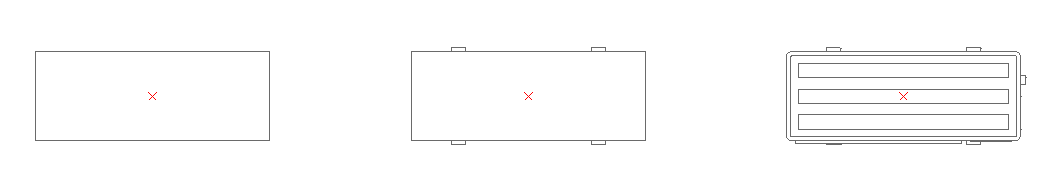

Object: Low, Medium, Full LOD Assignments

Recommended 3D Model Level of Detail

Creating very detailed 3D models can lead to a heavy polygon count that can slow down Archicad. Here are some hints to help you create Library Parts without compromising performance:

Avoid modeling details legible at scales less than 1:20 in general (e.g. 1:10 or 1:5 etc.)

Simplify shapes of frame/sashes sections or assembly profiles

Do not model unnecessary elements (if possible) such as door/window seals, detailed door/window ironmongery, fasteners and similar.

Avoid creating an excessive number of curved surfaces.

Creating curved surfaces with very small radii will result in faceted faces; the best approach is to simplify them. (A typical example for the simplification use would be extruded steel/aluminum profiles of door or window frames and sashes).

Use the Morph tool (plane with zero thickness) for elements that should appear as a single line in Sections (e.g. glazing panes or door leaf/window sash in “Schematic” 3D LOD).

Examples of 3D Model Level of Detail

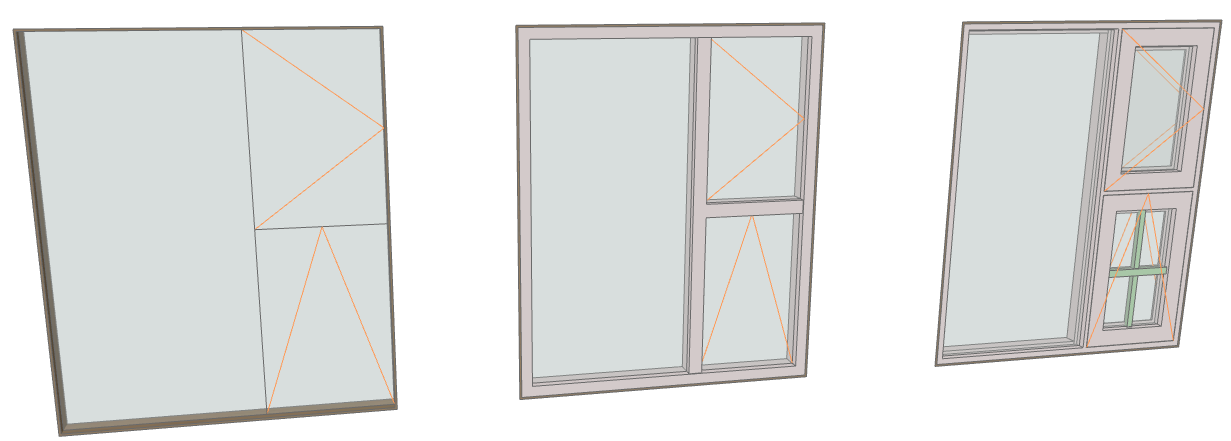

Window: Schematic, Simplified, Full LOD Assignments

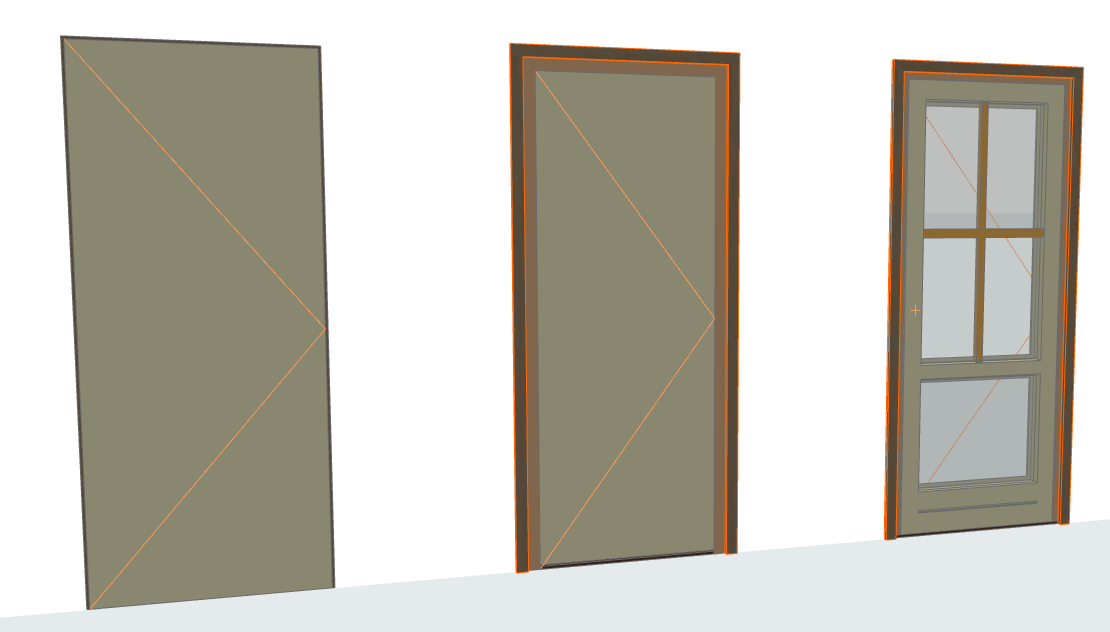

Door: Schematic, Simplified, Full LOD Assignments

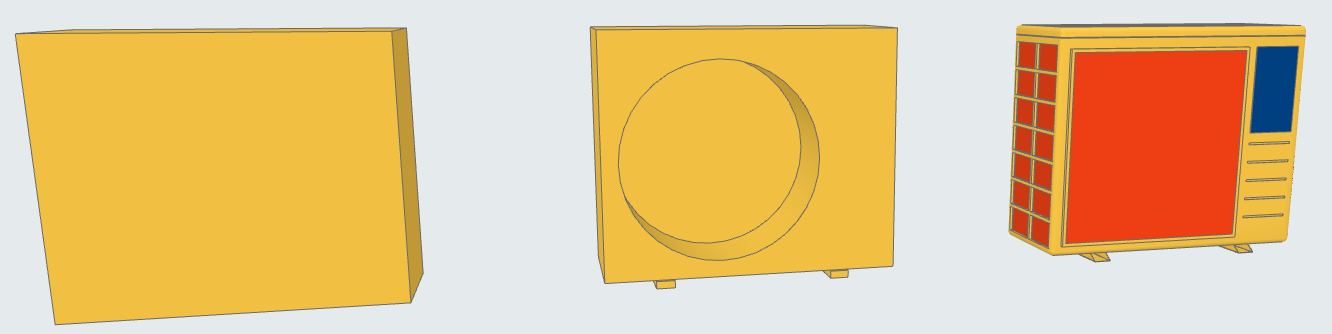

Object: Schematic, Simplified, Full LOD Assignments
