Select Property Scheme

Note: Part of the Library Part Maker add-on. See Library Part Maker.

The new Library Part must include a set of listing properties. These listing properties will be available in the Descriptions area (Custom Settings panel) in the Settings dialog of the saved Library Part.

To define the Library Part’s listing properties:

In the Properties panel, select an option to define the Library Part’s listing properties:

Property Scheme

Spreadsheet

Default Property Scheme

To populate the list for newly created objects, Library Part Maker uses the “Archicad Listing Parameters scheme” by default.

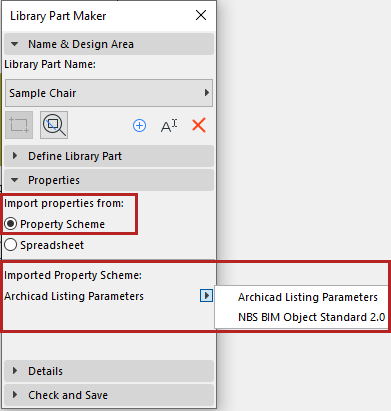

A screenshot of a cell phoneDescription generated with very high confidence

You can create any custom parameter scheme instead.

A custom scheme together with defined values can be imported directly from an Excel spreadsheet.

See Customizing Data Properties for details on creating or importing a custom scheme.
