Object/Lamp Listing Parameters

Parameter

Short Description

Long Description

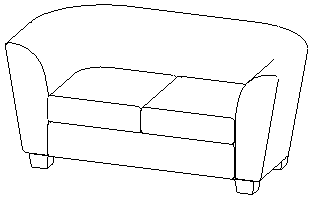

3D Front Axonometry

Shaded 3D Symbol of the Object.




Length (A)

Length of the Object as defined in the "Dimension 2" field of the Preview and Positioning Panel of Object Settings.

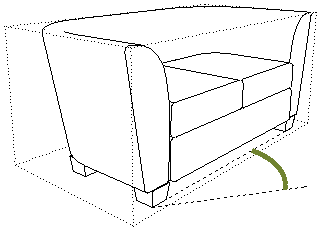

Rotation Angle

Rotation of the Object from its default position

Rotation either by rotation angle in the Preview and Positioning Panel of Object Settings, or rotating it graphically in the project.

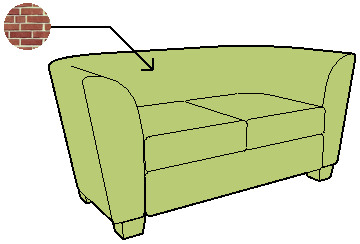

Surface

Surface of the Object as assigned in the Model tab page of Object Set­tings.
