Component Areas of Basic and Composite Elements

For most elements, the calculated area is the projection onto the virtual plane that runs through the center of the component.

The following table gives details about area calculation for each element type.

Basic or Composite Element

Which Plane is used to Calculate Projected Component Area?

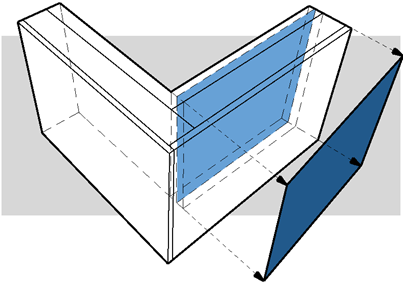

Regular Straight Wall

The vertical plane that runs through the center of the component.


Slanted Wall

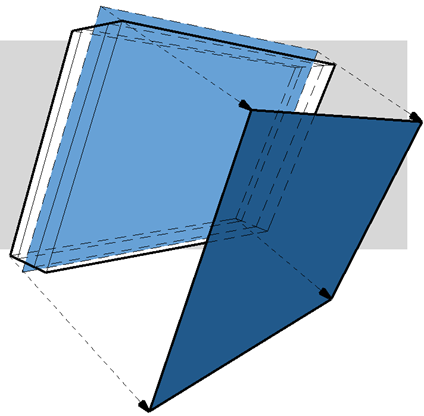

The slanted plane that runs through the center of the component.


Curved Wall

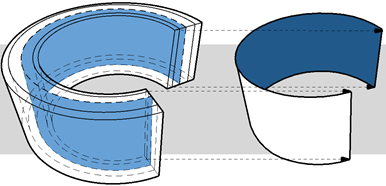

The plane of the vertical cylinder that runs through the center of the component.


Curved Slanted Wall

The plane of the cone that runs through the center of the component.


Double Slanted Wall

The plane of the variable-thickness component that is closest to the wall's reference line.


Trapezoid Wall

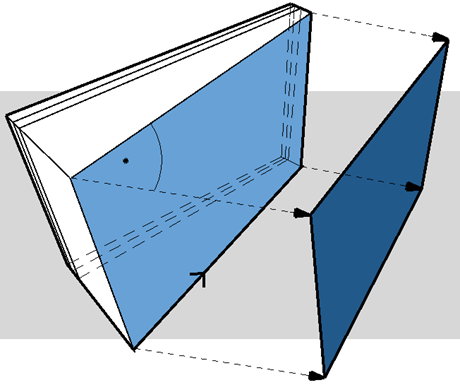

The plane of the variable-thickness component that is closest to the wall's reference line.


Polygon Wall

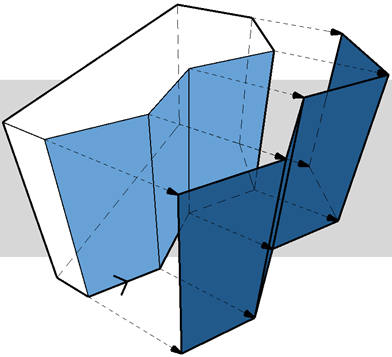

The plane(s) of the vertical polygon(s) defined by the reference edge(s).


Roof

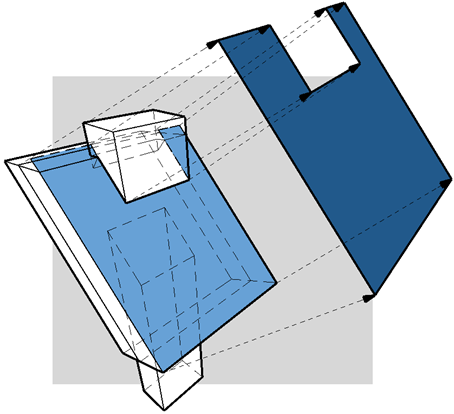

Plane of the roof.


Slab

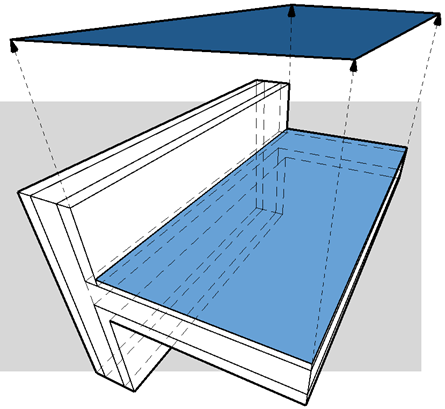

Plane of the slab.


Shell

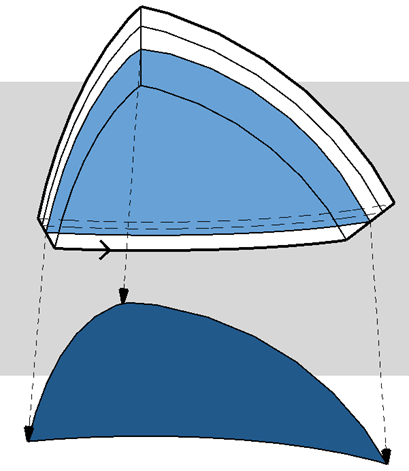

The plane of the component that is closer to the Shell reference plane


Mesh

The Mesh reference plane

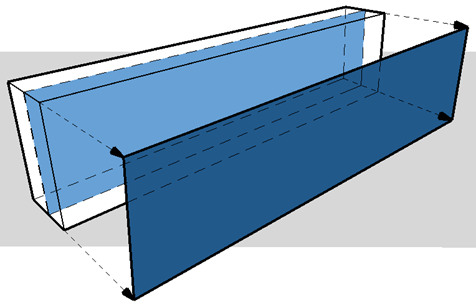

Straight Beam

The Beam's vertical plane


Column without Veneer

No component area is calculated.

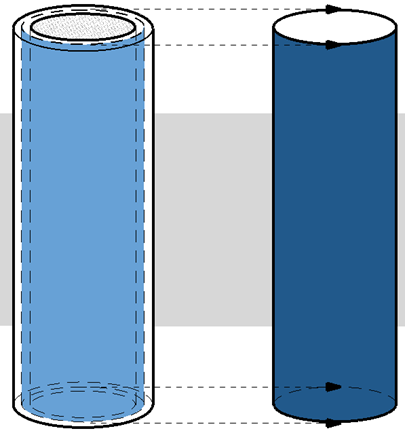

Column with Veneer (circular)

Circular column with veneer: The plane of the centerline of the veneer component.


Column with Veneer (rectangular)

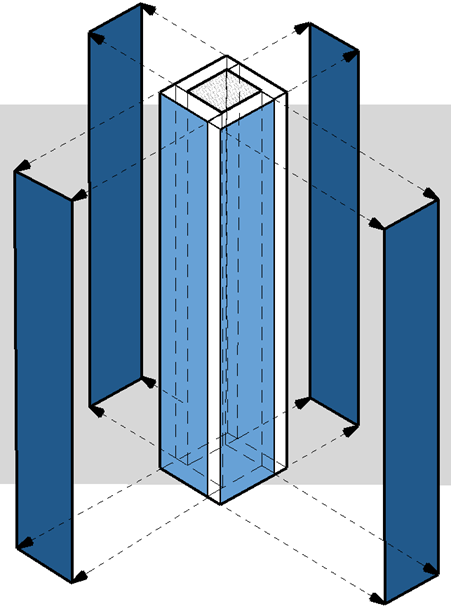

The program calculates the veneer as if it were divided into four parts as shown, and the vertical plane of each is used.


Morph

No component area is calculated
