Fog (Cineware Surface Channel)

These parameters enable you to simulate fog or gas clouds. Objects with such surfaces are translucent, but weaken the light that shines through them according to their density.


Use fog surfaces with closed objects only. Fog is a volume effect applied to the inside of an object.

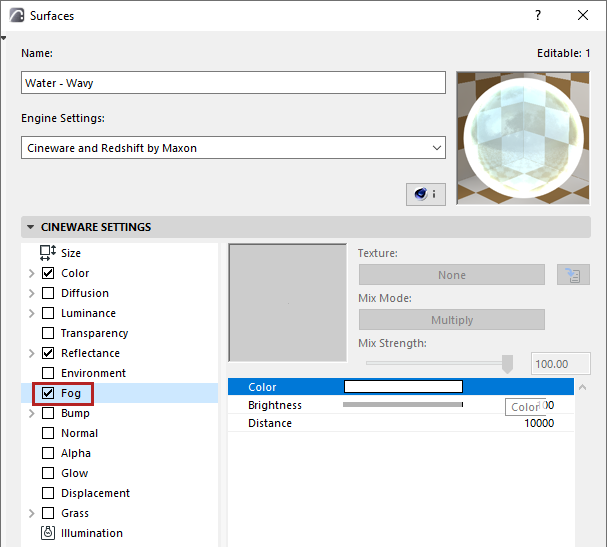

Color and Brightness

See Defining Color and Brightness Values.

See also the discussion of Fog color below.

Distance

Light rays weaken as the pass through the fog. You can control this weakening with Distance. The larger this value, the thinner the fog. Distance defines how far a light ray can pass through the fog.

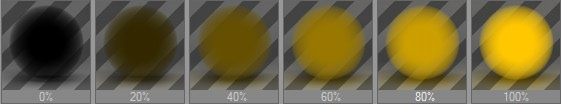

You can color the fog and this also affects its visibility. The further you look into the fog, the less the objects are visible and the more the fog color becomes visible. The fog color therefore also depends on the Distance value.

If you choose, say, a Distance of 500 units, a light ray of originally 100% intensity will have an intensity of 50% after a distance of 250 units and is extinguished completely after a further 250 units. The shorter the distance, the thicker the fog appears. In addition to this effect, after 250 units, half the fog color is added to the light and after 500 units, the full fog color is added.
