Create a Composite Wall

You can apply or customize a composite structure for a wall.

See Assign a Composite Structure to a Wall, Slab, Roof or Shell.

(Remember that the model’s Partial Structure Display settings will affect the display of composite walls.)

See Partial Structure Display.

If the structure of the Wall is a composite, then the Wall’s thickness is defined in Options > Element Attributes > Composites, and equals the sum of the skins’ thicknesses.

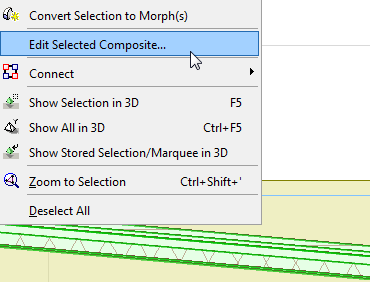

You can edit a selected composite by accessing its settings from its context menu:


See Composite Structures Dialog Box.

See also Reference Line of a Composite Wall.
