The Element Information Palette displays information about the dimensions of element(s) selected on the Floor Plan. (Use Window > Palettes > Element Information to display it.)
With this feature, you can get instant feedback on some simple quantities that do not appear in the elements’ settings dialog boxes, without having to use any listing commands.
Choose either All Selected or Last Selection to define which selected elements should be considered.

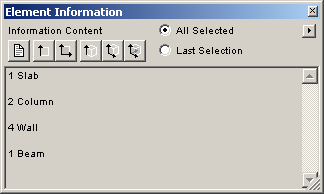

The Information Content buttons in the top section of the palette define what information will be shown. If none of the buttons is active, only the number and type of the selected elements is displayed.
The six buttons display, from left to right:

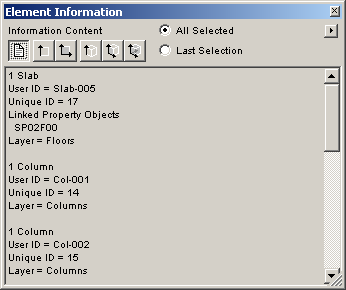

•ID, Layer and Linked Property information

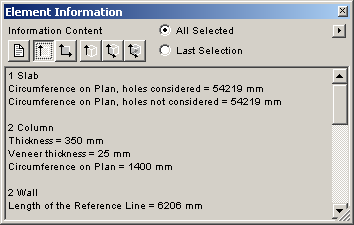

•Length, circumference and thickness values

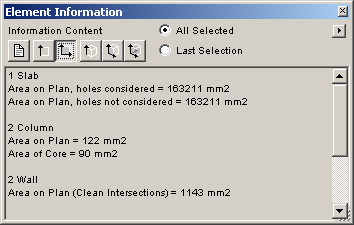

•Area values

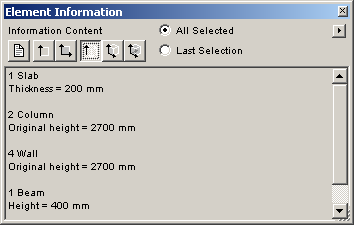

•Height values

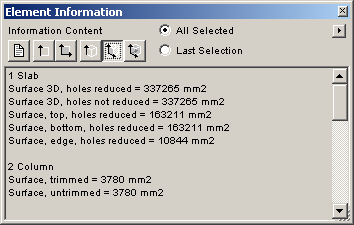

•Surface values
•Volume values

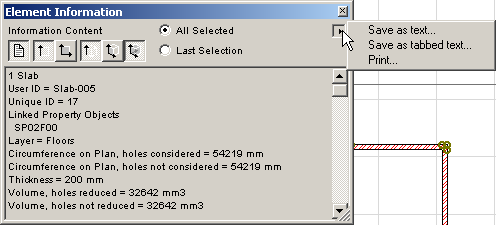

Use the pop-up commands in the top right corner of the palette to save or print the data shown.
See also Element Information Highlight and Element Information Pop-up (Info Tags).
