Save Custom Criteria Set

This function is part of the Reserve Elements dialog box in Teamwork.

See also Reserve Elements by Criteria.

If you have created custom criteria in the Reserve Elements dialog box and wish to save these criteria, use the controls to save them as a Custom Criteria Set.

Note: This interface is similar to ArchiCAD’s Find & Select dialog box.

See Find and Select Elements.

Custom Criteria Set Example

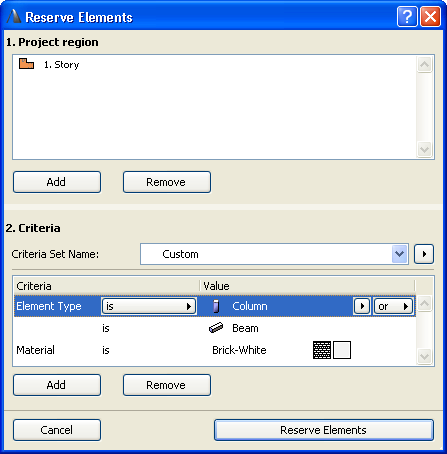

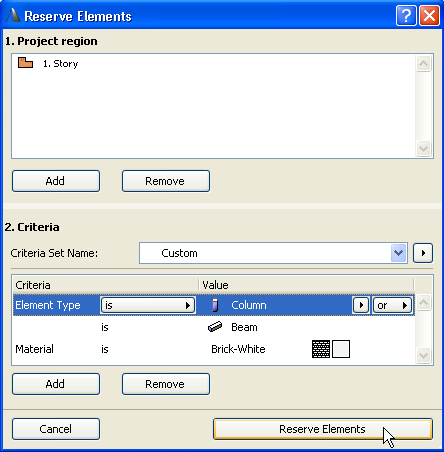

Here, you wish to reserve all columns and beams on 1. Story with white brick surface:

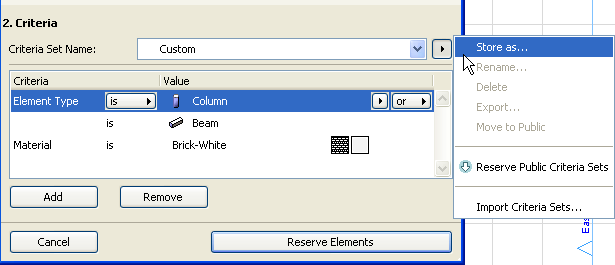

Note that the Criteria Set Name is now “Custom.” Click on the arrow to the right of the name to store this Criteria Set for later use.

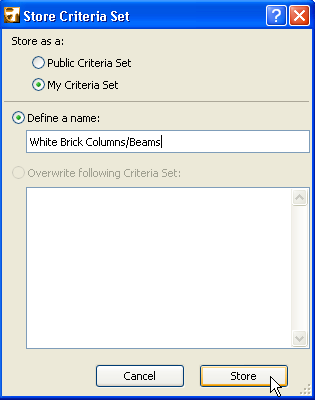

•In the appearing dialog box, give your newly defined Criteria Set a name (e.g. “White brick Columns/Beams”).

•Choose either Public Criteria Set (to make it available to all project users) or My Criteria Set (if you do not wish to share it).


•Click Store to return to the Reserve Elements dialog box.


The newly defined Criteria Set is now listed in the pop-up.

Stored Criteria Sets in Teamwork

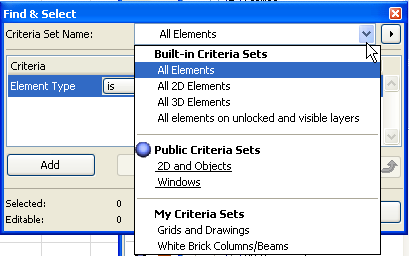

Criteria Sets that you create and store in the Reserve Elements dialog box are also available from the Find & Select dialog box.


Conversely, all the Criteria Sets you defined in the Find & Select dialog box are available from the drop-down Criteria Set Name menu in the Reserve Elements dialog box.

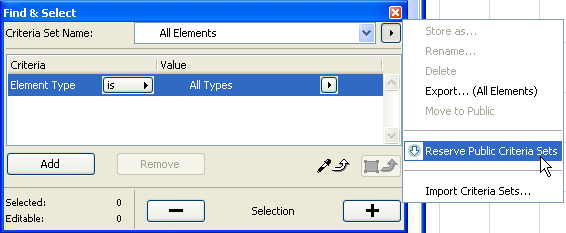

In a Teamwork Project, stored Public Criteria Sets can be reserved through the Find & Select dialog box: click Reserve Public Criteria Sets from the Criteria Name pop-up. Public Criteria Sets are shown as underlined if they have not yet been sent to the server.


This reservation means that you alone have the right to modify any of the stored Criteria Sets. However, any user - regardless of reservation status - can create, use and store new Criteria Sets.
