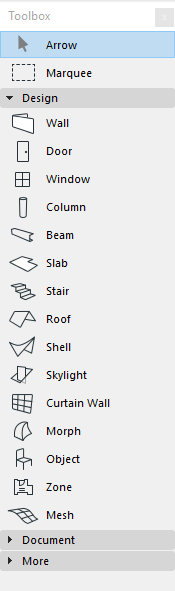

The Toolbox shows a variety of tools for selection, 3D construction, 2D drawing and visualization.
By default, the Toolbox is divided into Tool Groups -Select, Design, Document and More - to make it easier to locate the tool you need.
Additional tools can appear in the Toolbox, depending on the installation and Add-Ons.
Display the Toolbox
Use Windows > Palettes > Toolbox
Using the Toolbox
Do any of the following:
•Click any tool to activate it.
•Double-click to open its Tool Settings dialog box.
•Hover over the tool icon to access the Favorites chooser pop-up for that tool.
See also Favorites.
Use Options > Work Environment > Toolbox to customize the contents and arrangement of your toolbox.
See Toolbox Customization Dialog Box.
Store your customized Toolbox settings as part of a Tool Scheme in your Work Environment.
For details, see Work Environment Schemes.
